Description

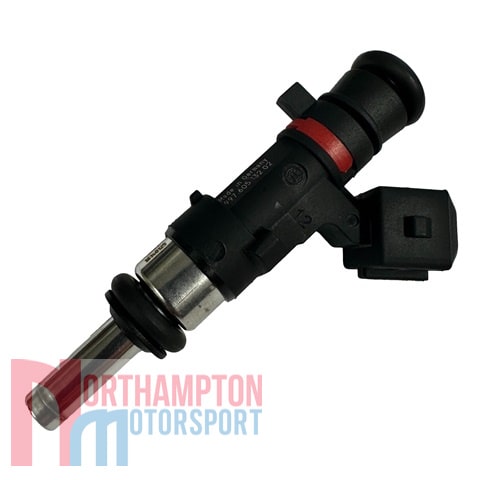

This Bosch 630cc Injector is a high impedance, 12 Ohm resistance, standard / medium length injector with a 24mm extended injector tip.
It comes with a AMP junior 2 way mini timer male connector (2-pin mini timer plug & pin kits are available separately if required). There is 53mm distance between o-rings with an overall length of 78.35mm. They have a split spray pattern (Conical 30 degrees).
Bosch 630cc Injector Specification:
- Volume: 627cc/min = 429g/min = 57lb/hr @ 3bar
- Spray pattern: Dual cone spray
- Body length: Standard body length
- Nozzle: Extended tip nozzle
- Resistance: 12 ohm resistance
- Connector: Jetronic
- E85 Compatible: Yes
For more information, spray patterns and specific dimensions, please see the spec sheet below:
Please note: The price is per Bosch 630cc Injector and are shipped with factory tolerances. We always recommend having fuel injectors flow matched, please Contact Us for more information and pricing.
Estimated dispatch time within 3 working days.
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
