Facet 40106 Solid State Fuel Pump (4.0 to 7.0 PSI)

£57.24 (+VAT)

Description

The Facet 40106 is high quality, self-priming solid state electronic fuel pump rated between 4 and 7 PSI.

These solid-state technology electronic fuel pumps provide outputs up to 132.5 litres/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a dry lift capacity of 120 inches. Two universal models provide complete coverage for all low and high-pressure carburettor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.

Specification

  • Specification: Fast Road
  • Pump: Facet 40106
  • Voltage:  12v
  • Earth: Neg
  • Pressure: 4.0 to 7 PSI
  • Flow: US Gallons/Hr 32
  • Dry Prime Height in Mtrs: 0.3
  • Thread Size: 1/8th nptf
  • Average Run Time or MTBF: 6000 hrs
  • Positive Shut-Off Valve: No
  • Check Valve: No
  • Operating Temperature: -40º F to +180° F
  • Legal Requirements: Certified & Complies With EEC 95/54 Requirements

Physical

  • Length: 75mm
  • Height: 60mm
  • Weight: 0.5kg

Please Note: When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal. The Facet 40106 Solid State Fuel Pump is not suitable for use in the aircraft industry.

Estimated dispatch time within 5 working days.

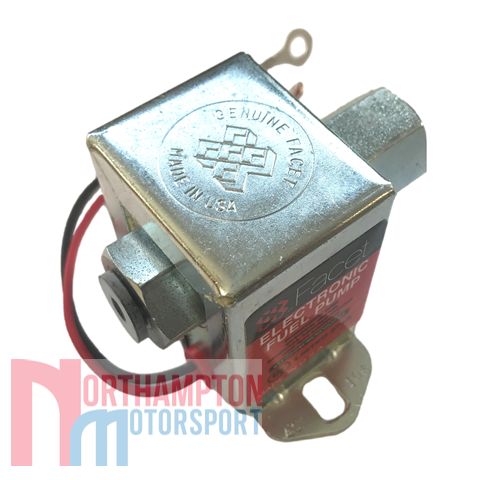

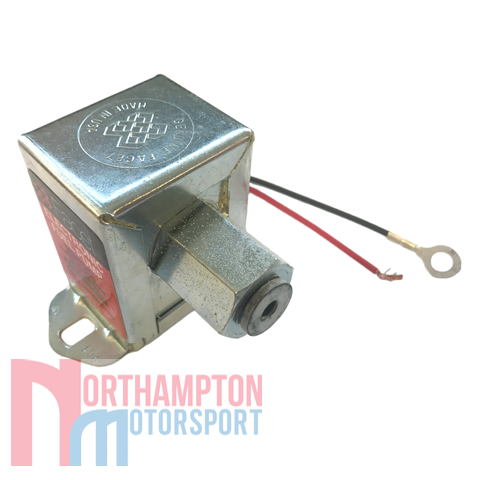

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
