Facet Silver Top Competition Fuel Pump Kit (6.0 to 7.0 PSI / 8mm Fittings)

£136.55 (+VAT)

SKU: 480530-K Categories: , Tags: , ,


This Facet Silver Top Competition Fuel Pump Kit is a high performance, lightweight and compact fuel pump kit (with 8mm unions) and rated between 6.0 and 7.0 PSI.

An industry standard for over 60 years, these lightweight compact pumps can be found in almost every conceivable application. With output ranges up to 170.3 liters/hour, .68 bar, these pumps will provide high-performance output for everything from racing cars to heavy duty agricultural and construction machinery.

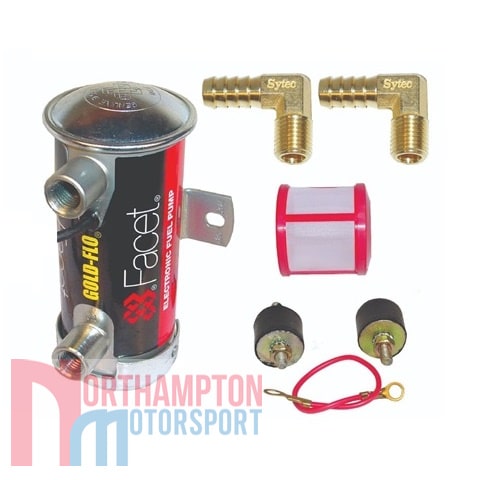

This kit consists of:

  • 476459 Facet Fuel Pump (x1)
  • FPA9011 8mm 90 Degree Union (x2)
  • FPA905 Facet Mounting Kit (x1)
  • FPA908R Spare Filter (x1)


  • Specification: Silver Top
  • Application: Competition
  • Voltage: 12v
  • Earth: Neg
  • Pressure (Psi): 6.0 to 7.0
  • Flow: US Gallons/Hr 35
  • Dry Prime Height in Mtrs: 0.6
  • Thread Size: 1/8 npt
  • Operating Temperature: -40º to +180° F (all Models)
  • Legal Requirements: Certified & Complies With EEC 95/54 Requirements


  • Length: 140mm
  • Height: 54mm
  • Weight: 0.7kg

Please Note: When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal. The Facet Silver Top Competition Fuel Pump kit is not suitable for use in the aircraft industry.

Estimated dispatch time within 5 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
