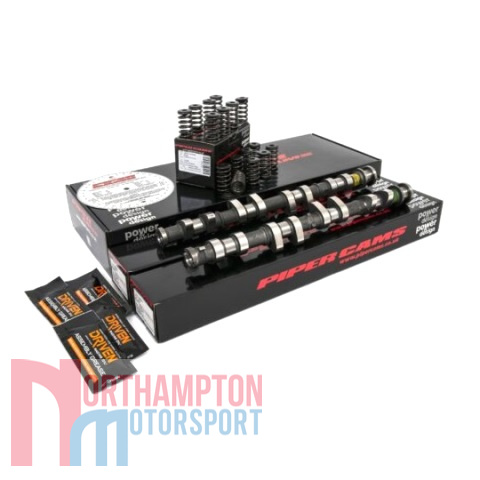

Ford Duratec Piper Fast Road Camshaft Kit suitable for the 1.6 litre, 2.0 litre and 2.3 litre Duratec engines.
These engines were fitted as standard to the Fiersta ST150, Mk3 Mondeo and the 2005 Focus (2.0 16v). It is also commonly used in various race cars, kits cars and is commonly used in the Motorsport world.
This kit contains:
- 1 x (Pair) Ford Duratec Piper Fast Road Camshafts (specification can be found below)
- 1 x (Set of 16) Ford Duratec Piper Single Valve Springs & Retainers
- 1 x Cam Timing Disc
- 1 x Cam Lube
- Application: Fast Road
- Power Band: 1800-6800
- Power Increase: 12BHP (approx)
- Duration Inlet: 260°
- Duration Exhaust: 244°
- Valve Inlet Lift: .383″ (9.73mm)
- Valve Exhaust Lift: .348″ (8.84mm)
- Timing Inlet: 17 – 63
- Timing Exhaust: 48 – 17
- Full Inlet Lift: 113°
- Full Exhaust Lift: 105°
- TDC Inlet Lift: .034″ (0.87mm)
- TDC Exhaust Lift: .034″ (0.87mm)
- Valve Inlet Clearance: .008″ (0.20mm)
- Valve Exhaust Clearance: .010″ (0.25mm)
These Fast Road Camshafts are CNC ground from new blank camshafts to standard base circle size for standard diameter tappets.
For more information and fitting instructions, please see the Spec sheet below:
Estimated dispatch time within 5 working days.
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
