Ford Ecoboost (1.6L) Piper Race Camshafts

£601.24 (+VAT)

SKU: FECO16BP320B Category: Tags: , ,


Ford Ecoboost (1.6L) Piper Race Camshafts suitable for the 1.6 Litre Ecoboost engine.

The Ford Ecoboost engine was fitted to a wide range of Fords including the Fiesta, Focus, Explorer, Mustang and Ranger. It is also found in the Lincoln Corsair & MKC as well as used in kit cars and various forms of Motorsport.

Camshaft Specification

  • Application: Race
  • Power Band: 2500-8500
  • Duration Inlet: 276°
  • Duration Exhaust: 264°
  • Valve Inlet Lift: .420″ (10.67mm)
  • Valve Exhaust Lift: .351″ (8.91mm)
  • Timing Inlet: 10 – 86
  • Timing Exhaust: 52 – 32
  • Full Inlet Lift: 128°
  • Full Exhaust Lift: 100°
  • TDC Inlet Lift: .010″ (0.27mm)
  • TDC Exhaust Lift: .094″ (2.39mm)
  • Valve Inlet Clearance: .010″ (0.25mm)
  • Valve Exhaust Clearance: .012″ (0.30mm)

For more information, please see the spec sheet below.

This Ford Ecoboost (1.6L) Piper Race Camshafts are CNC ground from a new blank camshaft.

Please Note: These camshafts are not suitable use use with standard O.E valve springs. Piper recommend the use of their Single Valve Springs & Retainer Kit with these camshafts.

Spec Sheet


Ecoboost Spec Sheet

Estimated dispatch time within 5 working days.

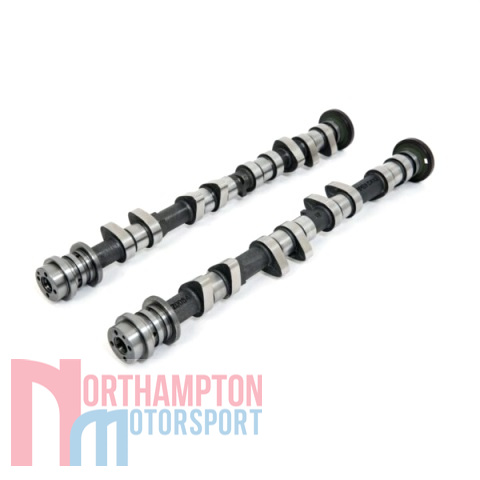

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
