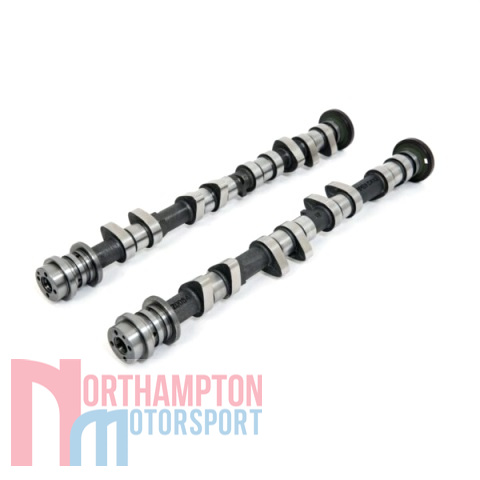

Ford Ecoboost (1.6L) Piper Ultimate Road Camshafts

£601.24 (+VAT)

SKU: FECO16BP285B Category: Tags: , ,


Ford Ecoboost (1.6L) Piper Ultimate Road Camshafts suitable for the 1.6 Litre Ecoboost engine.

The Ford Ecoboost engine was fitted to a wide range of Fords including the Fiesta, Focus, Explorer, Mustang and Ranger. It is also found in the Lincoln Corsair & MKC as well as used in kit cars and various forms of Motorsport.

Camshaft Specification

  • Application: Ultimate Road
  • Power Band: 2000-7500
  • Duration Inlet: 260°
  • Duration Exhaust: 244°
  • Valve Inlet Lift: .340″ (8.64mm)
  • Valve Exhaust Lift: .288″ (7.32mm)
  • Timing Inlet: 2 – 78
  • Timing Exhaust: 42 – 22
  • Full Inlet Lift: 128°
  • Full Exhaust Lift: 100°
  • TDC Inlet Lift: .003″ (0.07mm)
  • TDC Exhaust Lift: .042″ (1.06mm)
  • Valve Inlet Clearance: .012″ (0.30mm)
  • Valve Exhaust Clearance: .012″ (0.30mm)

For more information, please see the spec sheet below.

This Ford Ecoboost (1.6L) Piper Ultimate Road Camshafts are CNC ground from a new blank camshaft.

Please Note: These camshafts are not suitable use use with standard O.E valve springs. Piper recommend the use of their Single Valve Springs & Retainer Kit with these camshafts.

Spec Sheet


Ecoboost Spec Sheet

Estimated dispatch time within 5 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
