Ford Ecoboost (1.6L) Piper Valve Springs

£161.41 (+VAT)

SKU: VSSFECO16 Category: Tags: , , ,


Ford Ecoboost (1.6L) Piper Valve Springs suitable for the 1.6 Litre Ecoboost engine.

The Ford Ecoboost engine was fitted to a wide range of Fords including the Fiesta ST, Focus RS, Focus ST, Explorer, Mustang and Ranger. It is also found in the Lincoln Corsair & MKC as well as used in kit cars and various forms of Motorsport.


  • Rate (N/mm): 36
  • Rate (Lbf): 208
  • Seat Pressure (Lbf): 66
  • Seat Pressure (Kg): 30
  • Fitted Length (mm): 36
  • Nominal Internal Diameter: 16
  • Nominal Outside Diameter: 22.8
  • Crush Height (mm): 23.8

Please Note: These valve springs must be used with the Ecoboost (1.6L) Piper Valve Spring Retainers. They are also available in a kit form containing both the Valve Springs & Retainers at a discounted price.

Estimated dispatch time within 5 working days.

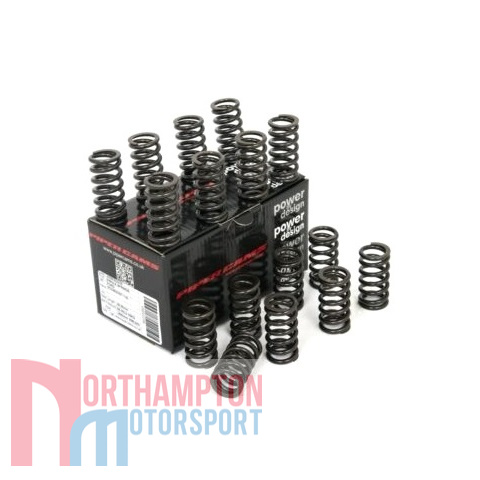

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
