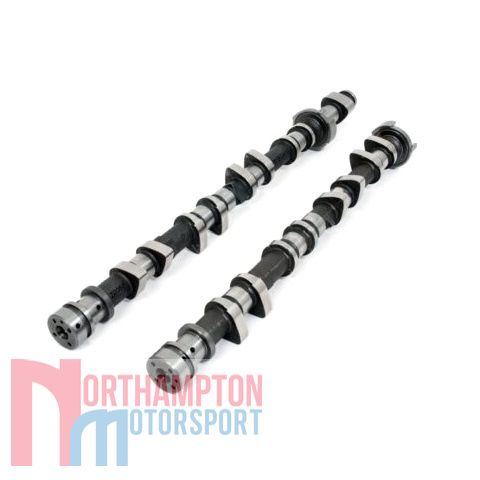

Ford Ecoboost (2.0L) Piper Rally Camshafts (FECO20BP300B)

£654.17 (+VAT)

SKU: FECO20BP300B Category: Tags: , ,


Ford Ecoboost (2.0L) Piper Rally Camshafts suitable for the 2.0 Litre Ecoboost engine.

The Ford Ecoboost engine was fitted to a wide range of Fords including the Focus RS, Focus ST, Explorer, Mustang and Ranger. It is also found in the Lincoln Corsair & MKC as well as used in kit cars and various forms of Motorsport.

Camshaft Specification

  • Application: Rally
  • Power Band: 3000-8000
  • Duration Inlet: 272°
  • Duration Exhaust: 268°
  • Valve Inlet Lift: .443″ (11.25mm)
  • Valve Exhaust Lift: .425″ (10.80mm)
  • Timing Inlet: 7 – 85
  • Timing Exhaust: 58 – 30
  • Full Inlet Lift: 129°
  • Full Exhaust Lift: 104°
  • TDC Inlet Lift: .009″ (0.23mm)
  • TDC Exhaust Lift: .082″ (2.08mm)
  • Valve Inlet Clearance: .010″ (0.254mm)
  • Valve Exhaust Clearance: .012″ (0.305mm)

For more information, please see the spec sheet below.

This Ford Ecoboost (2.0L) Piper Rally Camshafts are CNC ground from a new blank camshaft.

Please Note: These camshafts are not suitable use use with standard O.E valve springs. Piper recommend the use of their Single Valve Springs & Retainer Kit with these camshafts.

Spec Sheet


Ecoboost Spec Sheet

Estimated dispatch time within 5 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
