Ford Ecoboost (2.3L) Piper Double Valve Spring & Retainer kit suitable for the 2.3 Litre Ecoboost engine.
The 2.3L Ford Ecoboost engine was fitted to a wide range of Fords including the Focus RS, Focus ST, Explorer, Mustang and Ranger. It is also found in the Lincoln Corsair & MKC as well as used in kit cars and various forms of Motorsport.

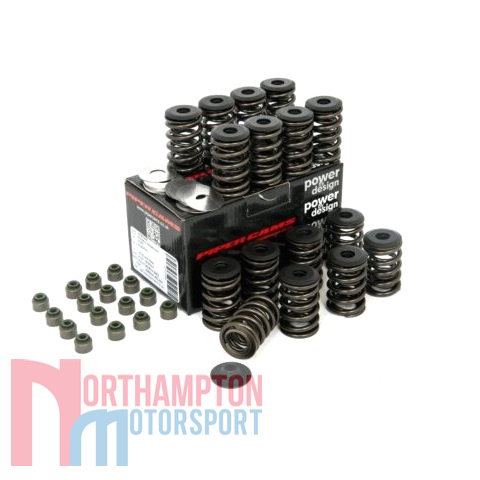

This Ford Ecoboost (2.3L) Piper Double Valve Spring & Retainer kit contains:
- 16 x Piper Double Valve Springs
- 16 x Piper Double Valve Spring Retainers / Caps
- 16 x Piper Under Spring Washers / Spring Caps
- 16 x Piper Valve Stem Oil Seals
- Rate (N/mm): 52
- Rate (Lbf): 297
- Seat Pressure (Lbf): 45
- Seat Pressure (Kg): 20
- Fitted Length (mm): 38
- Nominal Internal Diameter: 15.5
- Nominal Outside Diameter: 28.5
- Crush Height (mm): 22.27
Estimated dispatch time within 5 working days.
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
