Ford Escort Nitron NTR-R3 Suspension Kit (MK2 74/81)

£4,377.00 (+VAT)

SKU: FDMK2ESCNITR3 Category: Tags: , ,


Ford Escort Nitron NTR-R3 Suspension Kit suitable for the Mk2 Escort (between 1974 & 1981). The NTR R3 system sets the standard for ultimate performance with a design that offers drivers and engineers unparalleled damping control.

This kit includes:

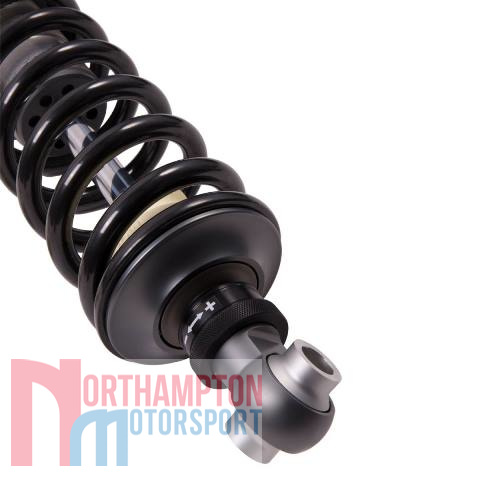

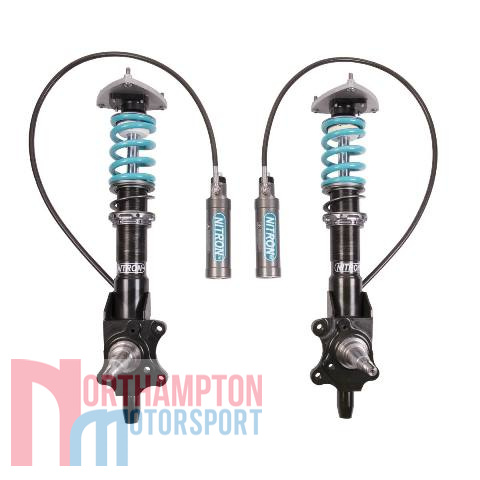

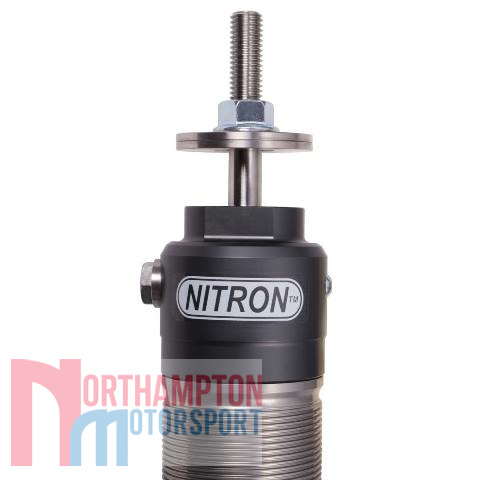

  • 2 x Front NTR-R3 3-way adjustable dampers (as pictured)
  • 2 x Rear NTR-R3 3-way adjustable dampers
  • 2 x Front Nitron Adjustable Top Mounts / Plates

3-Way independent damping adjustment:

By incorporating Nitrons class leading large diameter piston and ultra-strong piston rod, the R3 system demonstrates outstanding levels of performance, damping control and adjustment. Piggyback or remotely mounted reservoir allows quick and simple independent adjustment of rebound and fast and slow compression damping. The large range of adjustment and quality of feedback allows the experienced driver to fully exploit the full potential of their car. The R3 is a proven race winner and lap record holder across a wide spectrum of international motorsport formulas.

The high-grade materials protect against corrosion whilst reducing weight. Every Ford Escort Nitron NTR-R3 Suspension Kit is custom built, sprung and fully serviceable. Titanium and hard-anodised parts are hand built to last not only the lengthiest endurance races, season after season, but also the harshest of winters.

Bi-Axis Hose Fittings:

NTR Hose shocks are fitted with Nitrons exclusively developed Bi-Axis fittings that allow for simple and precise installation.

Top Mounts / Plates:

This kit also includes a pair of Nitron Top Mounts. Nitron Adjustable Top Plates / Mounts are a high precision international motorsport quality product. They are made from high quality Aluminium with the distinctive Nitron titanium grey anodised finish. Adjustment is provided for camber or combined camber and caster depending on the application. The absence of any rubber components and use of positive location and adjustment systems enables motorsport geometry settings to be achieved and to remain constant under arduous track and motorsport conditions.

The design also enables easy, accurate and independent adjustment of camber and castor. On this most applications the standard geometry is obtainable if required.

All Nitron Shocks are hand made to order to each customers requirements. Estimated dispatch time is usually within two to three weeks. Please Contact Us if you require a more specific lead time.

Picture for illustration purposes only. Specific details, finishes and end fittings may differ slightly from what is shown.
