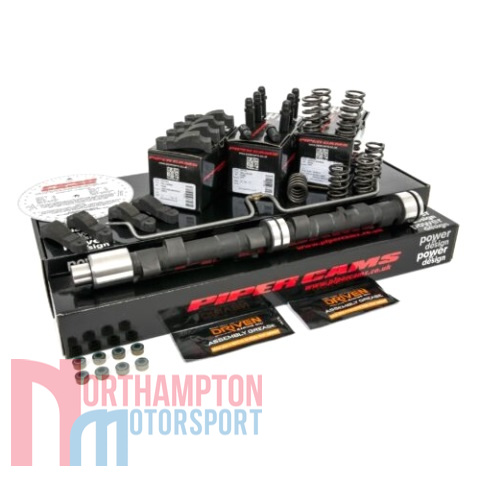

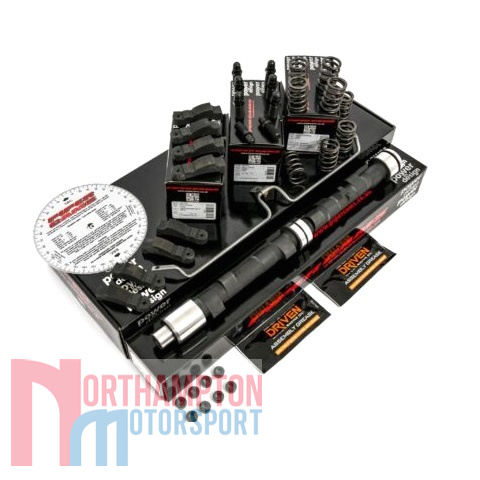

Ford Pinto Piper Fast Road Camshaft Kit (Injection)

£398.00 (+VAT)

SKU: KBOHC134 Category: Tags: , , ,


Ford Pinto Piper Fast Road Camshaft Kit (Injection) suitable for the 1.6 litre and 2.0 litre SOHC Pinto engines. This Camshaft is specifically for Injection Pinto engines with alternatives available for Carburettor and Turbocharged engines.

The Ford Pinto engine was fitted to a wide range of Fords including the Cortina, Escort, Capri, Sierra plus many others.

This Kit Contains:

Camshaft Specification

  • Application: Fast Road (Injection)
  • Power Band: 2000-6500
  • Power Increase: 15BHP (approx)
  • Duration Inlet: 266°
  • Duration Exhaust: 266°
  • Valve Inlet Lift: .480″ (12.19mm)
  • Valve Exhaust Lift: .480″ (12.19mm)
  • Timing Inlet: 23 – 63
  • Timing Exhaust: 63 – 23
  • Full Inlet Lift: 110°
  • Valve Inlet Clearance: .008″ (0.20mm)
  • Valve Exhaust Clearance: .010″ (0.25mm)

These Ford Pinto Piper Fast Road Camshaft is CNC ground from a new blank camshaft. Excellent power and torque increase combined with smooth idle. For more information and fitting instructions, please see the Spec sheet below:

Spec Sheet


Pinto Spec Sheet

Estimated dispatch time within 5 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
