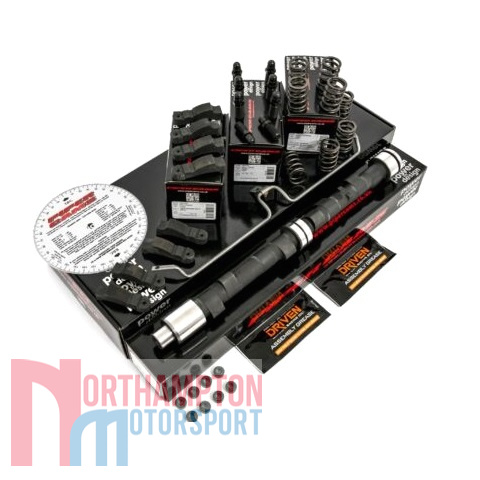

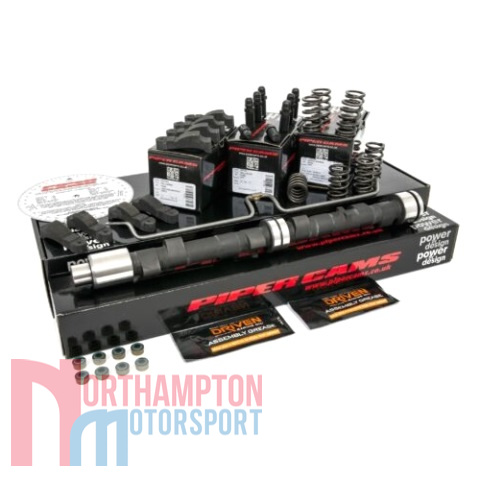

Ford Pinto Piper Ultimate Road Camshaft Kit

£398.00 (+VAT)

SKU: KBOHC285 Category: Tags: , ,


Ford Pinto Piper Ultimate Road Camshaft suitable for the 1.6 litre and 2.0 litre SOHC Pinto engines.

The Ford Pinto engine was fitted to a wide range of Fords including the Cortina, Escort, Capri, Sierra plus many others.

This Kit Contains:

Camshaft Specification

  • Application: Ultimate Road
  • Power Band: 2200-7000
  • Power Increase: 22BHP (approx)
  • Duration Inlet: 270°
  • Duration Exhaust: 290°
  • Valve Inlet Lift: .465″ (11.81mm)
  • Valve Exhaust Lift: .465″ (11.81mm)
  • Timing Inlet: 27 – 63
  • Timing Exhaust: 73 – 37
  • Full Inlet Lift: 108°
  • Valve Inlet Clearance: .008″ (0.20mm)
  • Valve Exhaust Clearance: .010″ (0.25mm)

This Piper Ultimate Road Camshaft is CNC ground from a new blank camshaft. it offers excellent mid range and top end power & torque. Good with standard carburettor and ideal for use with 2 x 45 DCOE’s. For more information and fitting instructions, please see the Spec sheet below:

Spec Sheet


Pinto Spec Sheet

Estimated dispatch time within 5 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
