Ford Zetec (Black Top) Piper Ultimate Road Camshaft set. These camshafts are suitable for the 1.8L 16v and 2.0L 16v Black top Zetec Engine (05/98 Onwards).
The Black Top Zetec engine was fitted to a wide range of Fords including MK1 Focus, Mk2 Mondeo and is also commonly found in various kit cars & competition cars.
- Application: Ultimate Road
- Power Band: 2500 – 7500
- Duration Inlet: 264°
- Duration Exhaust: 256°
- Valve Inlet Lift: .382″ (9.71mm)
- Valve Exhaust Lift: .361″ (9.18mm)
- Timing Inlet: 24 – 60
- Timing Exhaust: 56 – 20
- Full Inlet Lift: 108°
- Full Exhaust Lift: 108°
- TDC Inlet Lift: .063 (1.60mm)
- TDC Exhaust Lift: .045 (0.1.14mm)
- Valve Inlet Clearance: .010″ (0.25mm)
- Valve Exhaust Clearance: .012″ (0.30mm)
This Ford Zetec (Black Top) Piper Ultimate Road Camshaft set have been CNC ground to the standard diameter base circles from new blank camshafts. For more information and fitting instructions, please see the spec sheet below:
Please note: If you are using this Camshaft Set with Zetec (Black Top) Piper Mechanical Followers, you will also need to also purchase a set of Piper 8mm Valve Shims which will require final grinding.
Estimated dispatch time within 5 working days.

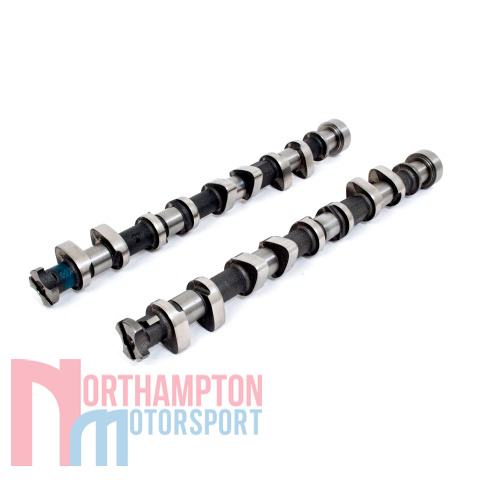

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
