Description

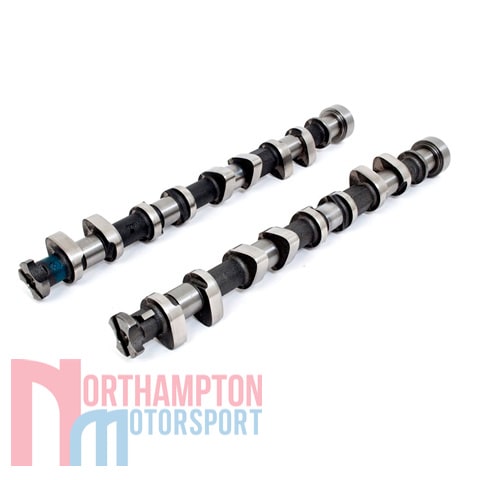

Ford Zetec (Silver Top) Piper Rally Camshaft set. These camshafts are suitable for the 1.6L 16v, 1.8L 16v and 2.0L 16v Silver top Zetec Engines.
The Silver Top Zetec engine was fitted to a wide range of Fords including the Escort, Orion, Fiesta and Mondeo. It is also commonly found in various kit cars & competition cars.
Specification:
- Application: Rally
- Power Band: 3000 – 8000
- Duration Inlet: 284°
- Duration Exhaust: 280°
- Valve Inlet Lift: .450″ (11.43mm)
- Valve Exhaust Lift: .425″ (10.80mm)
- Timing Inlet: 36 – 68
- Timing Exhaust: 68 – 32
- Full Inlet Lift: 104°
- Full Exhaust Lift: 104°
- TDC Inlet Lift: .123 (3.12mm)
- TDC Exhaust Lift: .108 (2.84mm)
- Valve Inlet Clearance: 010″ (0.25mm)
- Valve Exhaust Clearance: 012″ (0.30mm)
This Ford Zetec (Silver Top) Piper Rally Camshaft set have been CNC ground from new blank camshafts.
Please note: These camshafts have been designed for use with Mechanical Followers and should not be used with Hydraulic followers. Uprated Valve Springs & Retainers are also required for use.
For more information and fitting instructions, please see the spec sheet below:
Spec Sheet
Zetec (Silver Top) Spec Sheet
Estimated dispatch time within 5 working days.
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
