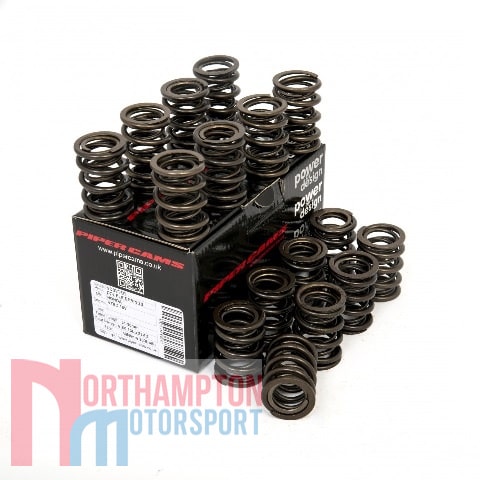

Honda K20 Piper Double Valve Springs

£227.49 (+VAT)

SKU: VDSVTEC Category: Tags: , ,


Honda K20 Piper Double Valve Springs suitable for the 2.0L 16v Honda K20 VTEC engines as found in the Civic Type-R. As well as the Civic, the K20 engine is used across all forms of Motorsport and is commonly found swapped into various chassis.


  • Rate N/mm: 46
  • Rate Lbf: 263
  • Seat Pressure Lbf: 50
  • Seat Pressure Kg: 23
  • Fitted Length mm: 34
  • Nominal Internal Diameter: 16.7
  • Nominal Outside Diameter: 29.1
  • Crush Height mm: 19.98
  • Spring Type: Double
  • Product Type: Valve Springs

These Piper Double Valve Springs are to be used with Honda K20 Piper Double Valve Spring Retainers.

Estimated dispatch time within 5 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
