Description

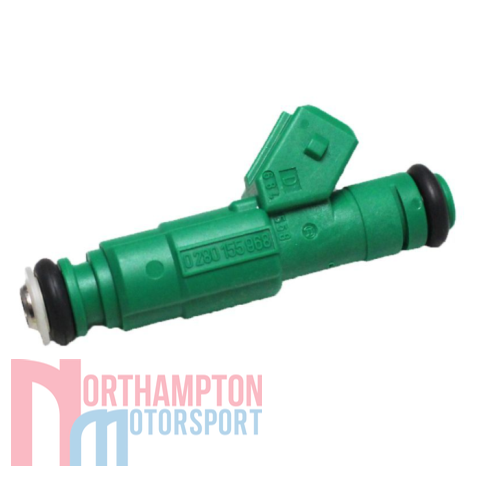

This Bosch 450cc Injector is a high impedance, 12 Ohm resistance, EV6 long fuel injector. It comes with a AMP junior 2 way mini timer male connector (2-pin mini timer plug & pin kits are available separately if required). There is 60.3mm distance between o-rings with an overall length of 73mm and has a split spray at 20 degree separation and at 90 degrees to connector.
Bosch 450cc Injector Specification:
- Volume: 453cc/min = 310g/min = 41lb/hr @ 3bar
- Spray pattern: Twin Cone
- Body length: Long
- Nozzle: Regular Tip
- Resistance: 12 ohm
- Connector: Jetronic
- E85 Compatible: Yes

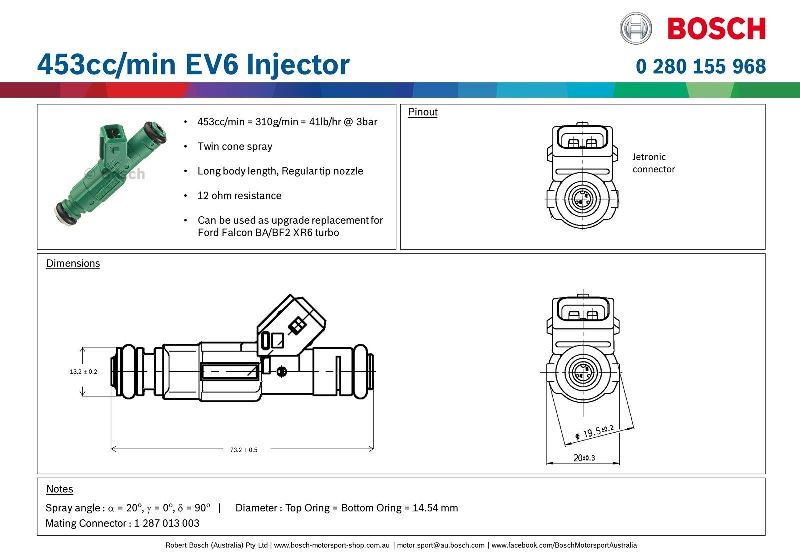

For more information and specific dimensions, please see the spec sheet below.
Please note: The market is flooded with copies of these specific fuel injectors. Rest assured that these injectors are Genuine Bosch.
Estimated dispatch time within 3 working days.
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
