Description

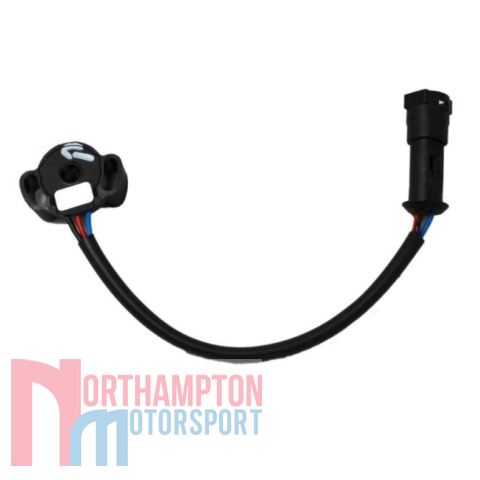

A Motorsport specification Colvern Throttle Position Sensor (TPS) from Jenvey Dynamics.
Supplied with AMP econoseal connector, fitting screws, clamp and cover plate (vital for durability). The male (wiring loom side) plug and pin kit is also available separately if required.
For more information and full technical spec for this Jenvey Colvern Throttle Position Sensor, please see the drawings below:
Technical Drawings
Colvern TPS Data Sheet
Colvern TPS Technical Drawing
Pinout
- Pin 1: TPS Signal (Red wire)
- Pin 2: +5v (Blue Wire)
- Pin 3: Ground (Black wire)
Please note: The recommended torque on mounting bolts is 1Nm. If the plug is removed or the wires are damaged, this immediately voids the warranty therefore a refund or replacement can’t be offered.
Estimated dispatch time within 3 working days.
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
