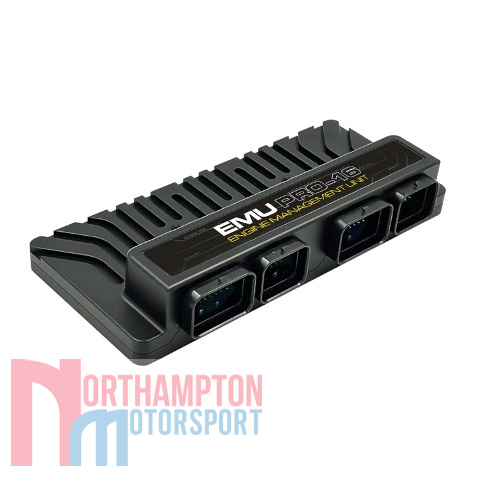

ECUMaster EMU Pro-16 ECU

£1,599.00 (+VAT)

The EMU Pro-16 ECU from ECUMaster is a stand-alone engine management system aimed directly at professional motorsport with a comprehensive feature set and vast tuning possibilities. It offers precise powertrain control coupled with ultimate flexibility to adapt engine calibrations for the most demanding projects.

For the full specification, please see the description below:

Description

The ECUMaster EMU Pro-16 ECU comes complete with plug and pins ready for installation.

Key Features

  • Advanced fuelling model including closed-loop short- and long-term trim algorithms combined with fuel film model gives exceptional accuracy of injectors control
  • The software has been designed to give the user unprecedented flexibility of configuration of strategies. The user may adjust the size of all tables in the software and the channels used on each table axis Bins values on the X and Y axis can be changed too, which increases the accuracy of the table readouts in non-linear parts of the described model
  • Flexible system with custom functions, numbers, CAN inputs and CAN exports, well known from Power Management Unit (PMU) and Advanced Display Unit (ADU)
  • Stand-alone sequential gearbox/ paddle-shift advanced strategy, up to 4 closed-loop stages, PWM solenoids control
  • Number of outputs and inputs covering most demanding applications
  • Engine type support – Four-stroke, two-stroke, rotary; up to 12 cylinders
  • Oxygen sensor – 2 x internal LSU 4.9 controller, up to 4 sensors support
  • 2 x DBW full support with auto-calibration
  • User-defined table sizes up to 32×32
  • Up to 4 VVT support, auto-calibration
  • 2 x CAN 2.0A/B, 1 x LIN bus
  • 2 x knock sensors
  • Logging to external USB memory
  • Up to 500 Hz data-logging
  • 8 x EGT inputs (or high-precision analogue inputs)
  • Total of 46 outputs and 30 inputs
  • Custom user functions, numbers, tables, and outputs
  • Water resistant IP 65 enclosure, bespoke CNC machined aluminium
  • On-line parameters analysis displayed on the graph log

Connectivity

Its important to note that to connect the ECUMaster EMU Pro-16 ECU to a Laptop or PC, you will need the purchase the ECUMaster USB to CAN adaptor.

Software Guide

ecumaster-emu-pro-8-software-guide

EMU Pro-8 Software Guide

Wiring Diagrams / Pinouts

ecumaster-emu-pro-16-wiring-diagram

EMU Pro-16 Wiring Diagram

ecumaster-emu-pro-16-pinout

EMU Pro-16 Basic Pinout

Dimensions

  • Length: 197mm
  • Width: 94.5mm
  • Height: 38.1mm (includes plug)

For more information, please see the technical drawing below:

ecumaster-emu-pro-16-dimensions

Technical Dimensions

Here at Northampton Motorsport, we also offer a full wiring and fitting service as well as engine calibration on our in house Superflow AD30 2 wheel drive chassis dyno. For more information, please contact us and a member of our team would be happy to assist with your enquiry:

Contact Us

Estimated dispatch time within 3 working days.
