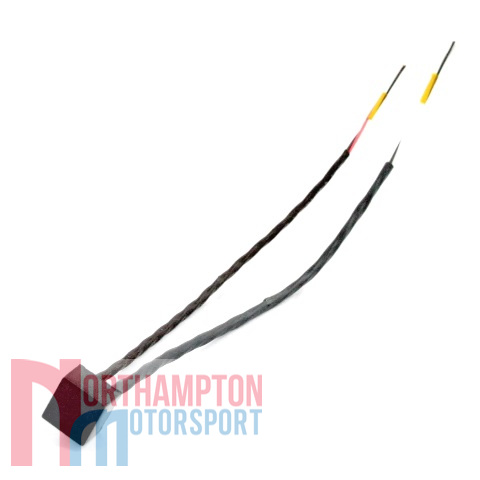

ECUMaster MUX Switch Box

£17.00 (+VAT)

Description

ECUMaster MUX Switch Box enables you to connect up to 3 switches to one analogue input on ECUMaster products.

Manufactured with very low tolerance resistors and all potted in 10mm x 10mm x 10mm cube.

ECUMaster MUX Switch Box Pinout:

3 Wires end:

  • Pink: 5v sensor
  • White: Any free analogue input
  • Black: sensor ground

4 Wires end:

  • White wires: switch 1, 2 ,3
  • Black¬†common for switches

Estimated dispatch time within 3 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
