Emerald ECU to OBD and Serial Breakout Loom

£24.50 (+VAT)

SKU: EM-02-056 Category: Tags: , ,

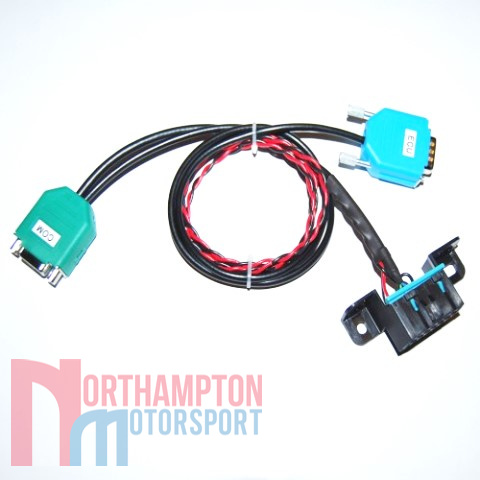

Emerald ECU to OBD and serial breakout loom / adaptor.

This ECU to OBD and serial breakout loom is for connecting OBD devices to either the Emerald K3 or K6 Engine management systems. It also allows for PC serial links at the same time. For more information, please see the technical drawing below.

Please note, the OBD function is only an available for certain firmware options. Please contact us if you would like to check your firmware capability prior to purchase.

Technical Drawing

emerald_obd_serial_breakout_loom_technical_drawing

ECU to OBD and Serial Breakout Loom

Estimated dispatch time within 5 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
