Description
Ford Sigma Piper Valve Spring & Retainer kit. This kit is suitable for the 1.6L fixed cam Sigma engines as well as the 1.6L Ti-VCT Sigma engines.
These engines were fitted as standard to a wide range for Fords and commonly found in the Fiesta and Focus. It was also used by Caterham, various race cars, kits cars and is found across the Motorsport world.
This Sigma Piper Valve Spring & Retainer kit includes:
- 16 x Piper Single Valve Springs
- 16 x Piper Single Valve Retainers (SC24)
Specification
- Rate (N/mm): 36
- Rate (Lbf): 207
- Seat Pressure (Lbf): 50
- Seat Pressure (Kg): 23
- Fitted Length (mm): 38
- Nominal Internal Diameter: 16
- Nominal Outside Diameter: 22.74
- Crush Height (mm): 24
Estimated dispatch time within 5 working days.

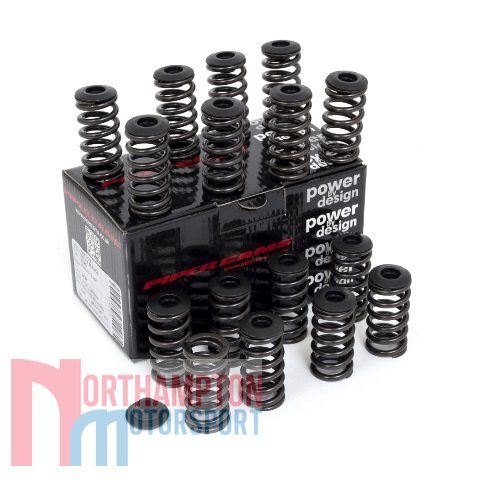

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
