Jaguar XK6 Jenvey Inlet Manifold with Water Pipe

£1,053.00 (+VAT)

SKU: MJ05-K Category: Tags: , ,

Description

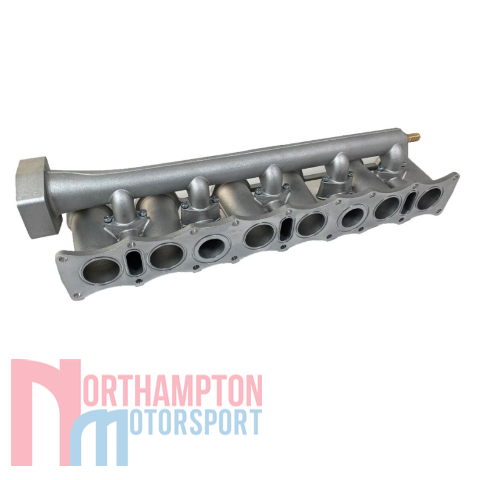

Jaguar XK6 Jenvey Inlet Manifold suitable for the Jaguar Straight 6 engine as found in the E-Type series 1 (3.8L & 4.2L engines) as well as the series 2 4.2L engine. This inlet manifold has the inlet flanges to suit Jenvey DCOE Heritage and standard throttle bodies.

The XK6 Jenvey Inlet Manifold has features on the underside for a ECU water temperature sensor (M12 fitting), dashboard water temperature sender (5/8 UNF) & a spare undrilled water feature boss. Along with a 1/4 BSP brake boost take off and undrilled features on all runners for idle air etc.

The included Water manifold suits the series 1, 3 bolt, 4.2L thermostat housing and thermostat, includes a heater outlet and a 1/8 BSP tapped hole for a thermostat bypass hose.

Technical Drawing

jaguar_xk6_jenvey_mj05_technical_drawing

MJ05 Technical Drawing

Estimated dispatch time within 5 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
