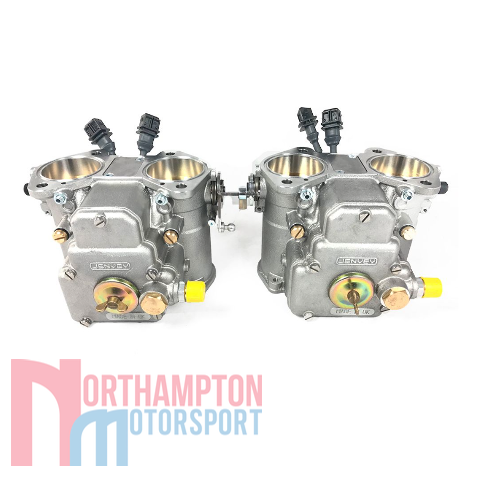

Jenvey Heritage DCOE Throttle Body Pair

£1,422.00£1,576.00 (+VAT)

Description

The Jenvey Heritage DCOE throttle body is a twin throttle body pair set up to suit 4 cylinder engines which is available in TDP40, TDP45, TDP48mm bore options. Jenvey Heritage DCOE Throttle Bodies are designed to fit the standard Webber carburettor flange.

This kit includes a built in fuel rail, 350CC injectors (other injector sizes available), extension looms to bring the injector connector to the underside of the throttle body and a hidden internal throttle position sensor.

Please note: It is not advised to run the Heritage Throttle Bodies with engines running boost. If you wish to run throttle bodies with a forced induction engine, we advice you to take a look at Jenveys standard throttle bodies.

All Jenvey heritage products are compatible with E10 fuel (and up to E20). Moving to fuel injection will allow for easier air fuel ratio compensation and adjustment for any change in the future. Standalone Engine Management will be required for use. Please see our range of ECU’s if required.

Technical Drawings

jenvey-heritage-throttle-body-drawing

Technical Drawing

jenvey-td-heritage-throttle-body-setup

TPS Setup

Fitting Instructions

jenvey-heritage-throttle-body-fitting-instructions

Fitting Instructions

jenvery-heritage-bodies-fuel-system-single-pump

Fuel System (Single Pump)

jenvery-heritage-bodies-fuel-system-collector-pot

Fuel System (Collector Pot)

Estimated dispatch time within 5 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
