Jenvey Heritage IDA Throttle Body (Single)

£917.00 (+VAT)

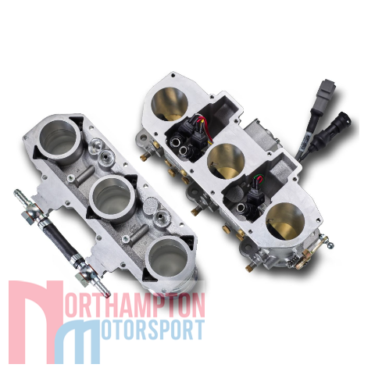

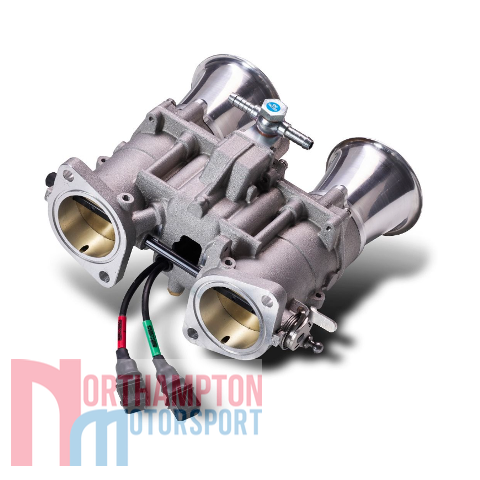

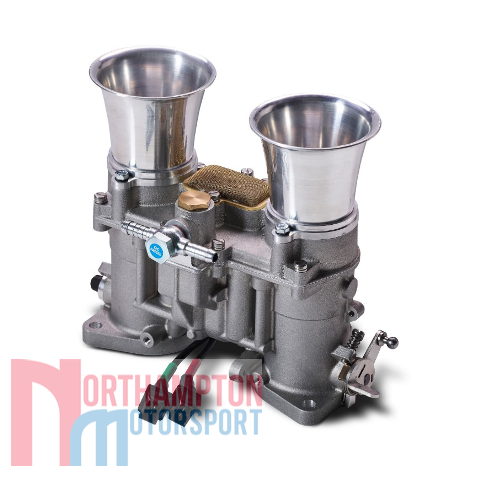

The Jenvey Heritage IDA Throttle Body is a single twin throttle body set up to suit 2 cylinder engines which is available in TDA2S-48mm and TDA2S-50mm bore options. Jenvey Heritage IDA Throttle Bodies have been designed to fit the standard Webber carburettor flange. They can be purchased in multiples for 6, 8 or 12 cylinder engines.

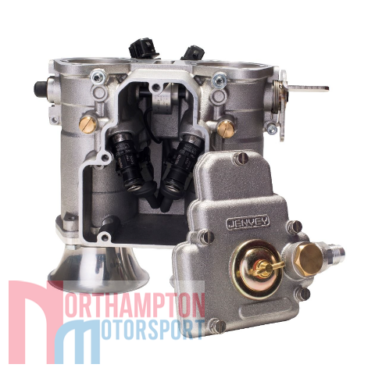

This Heritage IDA Throttle Body includes a built in fuel rail, 350CC injectors, extension looms to bring the injector connector to the underside of the throttle body and a hidden internal throttle position sensor.

Please note: It is not advised to run the Heritage Throttle Bodies with engines running boost. If you wish to run throttle bodies with a forced induction engine, we advise you to take a look at Jenveys standard throttle bodies.

All Jenvey heritage products are compatible with E10 fuel (and up to E20). Moving to fuel injection will allow for easier air fuel ratio compensation and adjustment for any change in the future. Standalone Engine Management will be required for use. Please see our range of ECU’s if required.

Technical Drawings


Throttle Bodies Technical Drawing

Fitting Instructions


Fitting Instructions


Fuel System (Single Pump)


Fuel System (Collector Pot)

Estimated dispatch time within 5 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
