Description

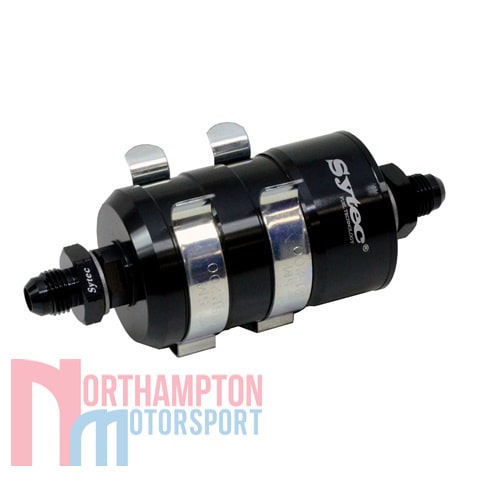

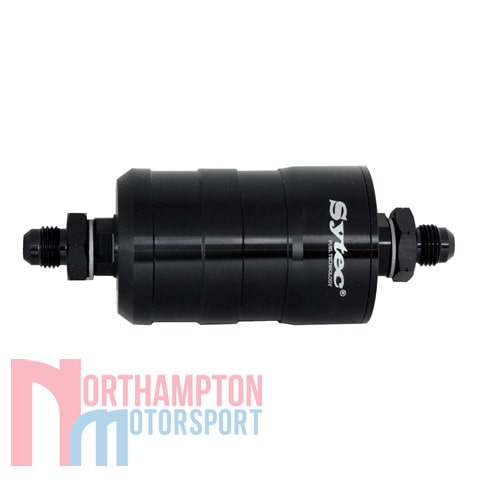

The Sytec Bullet High Flow Fuel Filter is an inline, 132-Micron fuel filter with JIC6 fittings. This fuel filter has a flow capacity of 500 Ltr/Hr and are capable of handling up to 10 Bar pressure. The Sytec Bullet High Flow Fuel Filter has been designed for use in either a Pre or Post fuel pump format and in both carburettor (Low Pressure) or fuel injection (High Pressure) fuel systems.
Specification:
- Colour: Black
- Body Material: Aluminium (Anodised)
- Seal Material: Viton
- Inlet Union Size: JIC6
- Outlet Union Size: JIC6
- Main Body Internal Thread: 14 x 1.5mm Female
- Filter Material: Stainless Steel (132 Micron)
- Mounting Clips: Yes (2x mounts supplied as pictured)
- Fuel type: Petrol E5, E10, Diesel
- Flow (Max): 500 Ltr/hr
- Pressure (Max): 10 Bar
- Main Body Dimensions: 110 x 50mm
- Main Body Weight: 150 grams
Estimated dispatch time within 5 working days.
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
