Description

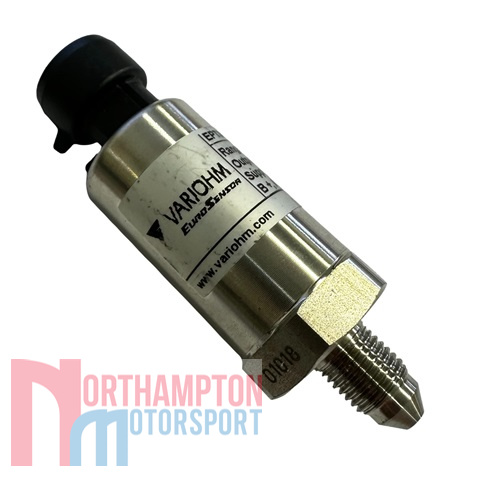

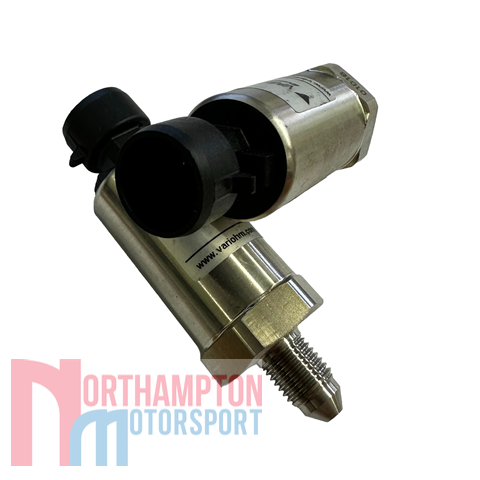

The Variohm EPT3100 Fluid Pressure Sensor is a high quality all stainless steel pressure transducer. It’s intended for use in the measurement of gases and liquids compatible with stainless steel up to 10 Bar of pressure. It is suitable for automotive, industrial hydraulics, refrigeration off-road, construction and agricultural applications.
The EPT3100 strain gauge sensing element coupled with the latest ASIC circuitry, assures excellent accuracy, choice of high level outputs and long stability, protected within a rugged, stainless steel housing. The EPT3100 high strength stainless steel construction contains non-silicone oil and no internal O’ rings. Measurements are in gauge up to 10 Bar and are backed by a one-year warranty.
This fluid pressure sensor is finished with a 3/8×24 UNF Male (Dash Size 3) thread and Packard Metripac connector (plug and pins kit available separately if required).
Variohm EPT3100 Fluid Pressure Sensor Specification:
Performance
Accuracy @ RT % of the range (gauge and vacuum sensors) < 0.5 BFSL ≤ 0.125.
% of the range (absolute sensors) < 1.0
(incl. nonlinearity, hysteresis, repeatability, zero-offset and final offset acc. to IEC 61298-2)
- Non-linearity: % of the range ≤ 0.15
- Repeatability: % of the range ≤ 0.10
- Stability/year: % of the range ≤ 0.10
- Response time: (10..90%) t(ms)1
- Overrange pressure: up to 2x rated pressure
- Burst pressure: up to 5x rated
Temperature
- Measuring medium: -40 to 125 (°C)
- Ambience: -40 to 105 (°C)
- Storage: -40 to 125 (°C)
- Compensated range: 20 to 85 (°C)
Environment
Temperature coefficient within the compensated range:
- Mean TC offset % of the range ≤ 0,15 / 10K
- Mean TC range % of the range ≤ 0,15 / 10K
- Shock: 1000 G, 11 msec., 1/2 Sine
- Vibration: 25 G peak, 20 to 2000 Hz
- Sealing: IP 66, optional IP69K
Electronics
Output / Supply:
- 0 – 10V / 12 – 32 VDC
- 0 – 5 V / 32 VDC non ratiometric
- 1 – 5 V / 32 VDC non ratiometric
- 5 – 4.5V / 5V ratiometric
- 4 – 20 mA / 10 – 32 VDC
- I²C / 5 VDC
- Output impedance: < 100 Ω
- Current consumption: < 10 mA
- Reverse voltage protection: Yes
Mechanics
- Housing: 304 stainless steel
- Wetted parts: 17-4PH stainless steel
- Pressure port: 3/8×24 UNF Male (Dash Size 3)
- Electrical connection: Packard Metripac connector
- Weight: 60g
Pinout
- Pin A: – Supply
- Pin B: + Supply
- Pin C: Output +
12C Protocol
Variohm EPT3100 12C Protocol
