Description

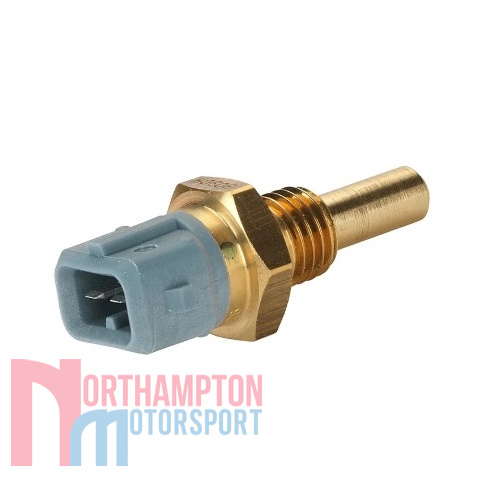

Bosch 026 Oil Temperature Sensor designed to measure fluid temperatures such as coolant, fuel, oil and water.
The signal may be used as a control value for engine control units or as a measurement value which is logged in a data acquisition system. The NTC sensing element has a negative temperature coefficient. This means, that with increasing temperature the conductivity rises. The sensing element of the temperature sensor is made of semiconducting heavy metal oxide and oxidized mixed crystals, which are equipped with a protective housing. The main benefit of the sensor is the combination of a high quality production part and a robust compact design.
Mating Connector is available separately if required.
Specification:
- Application: -40 to 130°C
- Accuracy at 25°C: ± 1.4°C
- Accuracy at 100°C: ± 3.4°C
- Male thread: M12 x 1.5
- Nominal resistance: 2.5 kOhm ± 5 % (at 20°C)
For more technical information on this Bosch 026 Oil Temperature Sensor and specific dimensions, please see the data sheet below:
Data Sheet
Bosch 026 Data Sheet
Estimated dispatch time within 3 working days.
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
