Description
Caterham Narrow Track De-dion NTR-R3 Suspension Kit suitable for all Post 1996 Narrow Track Caterhams with De-dion suspension. The NTR R3 system sets the standard for ultimate performance with a design that offers drivers and engineers unparalleled damping control.

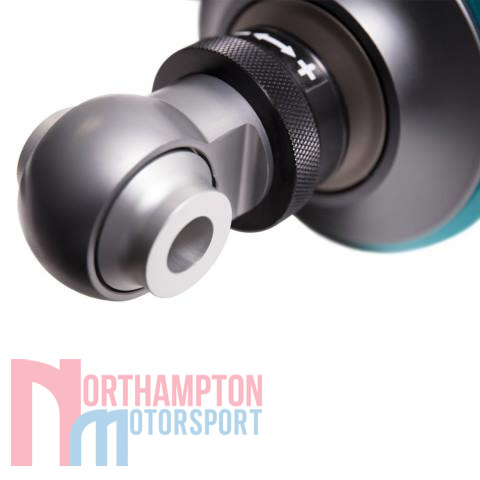

3-Way independent damping adjustment: By incorporating Nitrons class leading large diameter piston and ultra-strong piston rod, the R3 system demonstrates outstanding levels of performance, damping control and adjustment. Piggyback or remotely mounted reservoir allows quick and simple independent adjustment of rebound and fast and slow compression damping. The large range of adjustment and quality of feedback allows the experienced driver to fully exploit the full potential of their car. The R3 is a proven race winner and lap record holder across a wide spectrum of international motorsport formulas.
The high-grade materials protect against corrosion whilst reducing weight. Every Caterham Narrow Track De-dion NTR-R3 Suspension Kit is custom built, sprung and fully serviceable. Titanium and hard-anodised parts are hand built to last not only the lengthiest endurance races, season after season, but also the harshest of winters.
Bi-Axis Hose Fittings: NTR Hose shocks are fitted with Nitrons exclusively developed Bi-Axis fittings that allow for simple and precise installation.
Does my Caterham have Narrow Track or Wide Track suspension?
Caterhams leave the factory with either narrow track or wide track suspension. When ordering an aftermarket suspension kit, its critical to ensure that the correct suspension kit is ordered as fitting the incorrect length dampers will affect the cars handling and not in a good way. If you are not sure if you have narrow track or wide track suspension, there are a couple of simple ways you can work it out:
Upper wishbone length:
The upper wishbone length on a narrow track is approximately 140mm and 180mm on the wide track variant.
Dampers:
On a Caterham with wide track suspension, you would usually notice a spacer at the top of the damper which is not present on a narrow track Caterham.

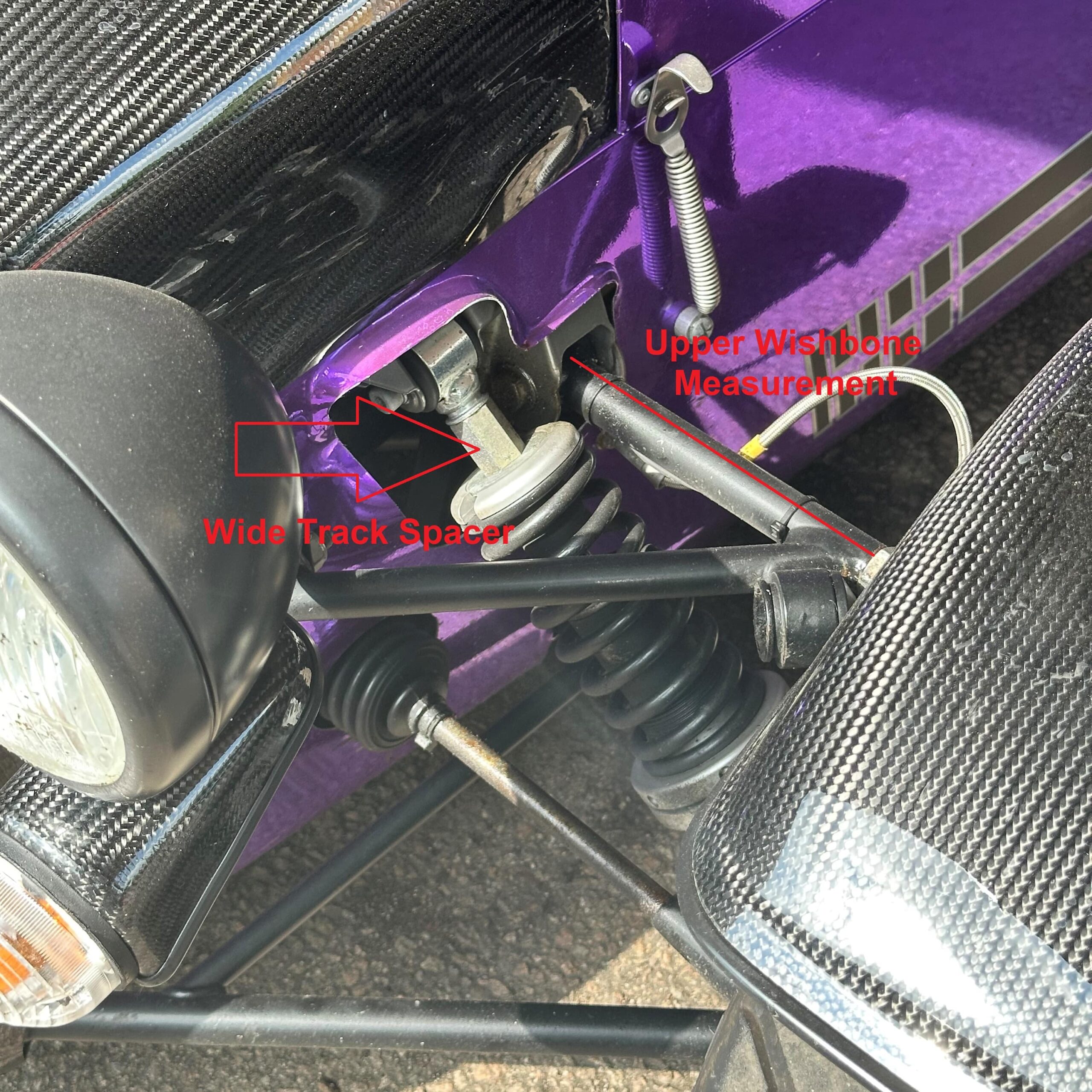

Examples can be seen on the image below:
If you are still not sure, please Contact Us for more information.
All Nitron Shocks are hand made to order to each customers requirements. Estimated dispatch time is usually within two to three weeks. Please Contact Us if you require a more specific lead time.
Picture for illustration purposes only. Specific details, finishes and end fittings may differ slightly from what is shown.
