Description
The ECUMaster EGT Sensor has been designed to measure exhaust gas temperatures up to 1,300°C. Thermocouples are temperature sensors which generate a small temperature corresponding voltage due to their thermo electrical behaviour without any additional external energy. The mantle thermocouple has a metal mantle which includes two inner wires made of thermo material (NiCr-Ni). The wires are isolated. The main feature and benefit of this sensor is a very quick response time, the combination of high quality production part and robust design with INCONEL sheath for long life and reliability.
Small diameter tip for fast response and six mm fitting diameter to avoid vibration damage make this product suitable for truly professional applications.

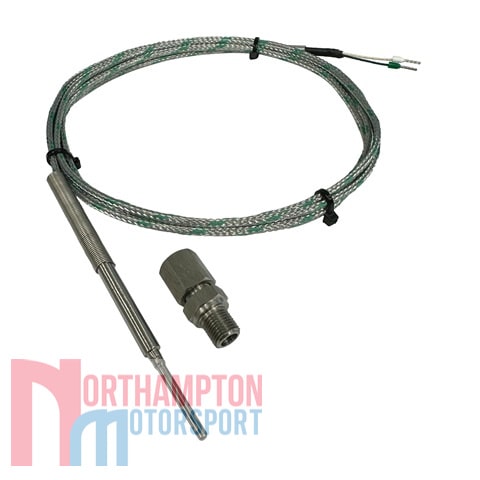

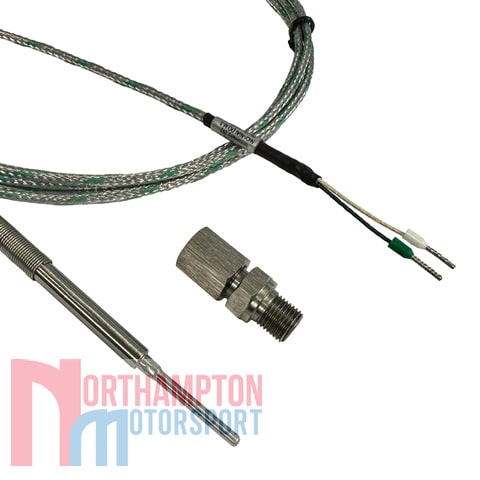

This ECUMaster EGT Sensor includes:
- 25mm x 3mm probe (x1)
- 2 Meters metal braid cable (x1)
- 50mm Inconel sheath (x1)
- Compression fitting (x1)
- Mounting adapter (x1 / m10 x 1 thread)

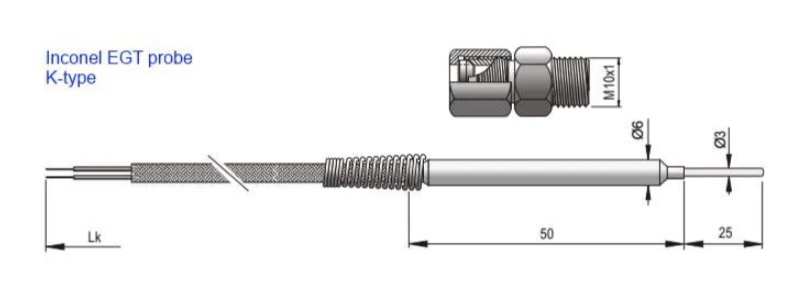

This sensor comes fully assembled, technical drawing can be found below:
Estimated dispatch time within 3 working days.
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
