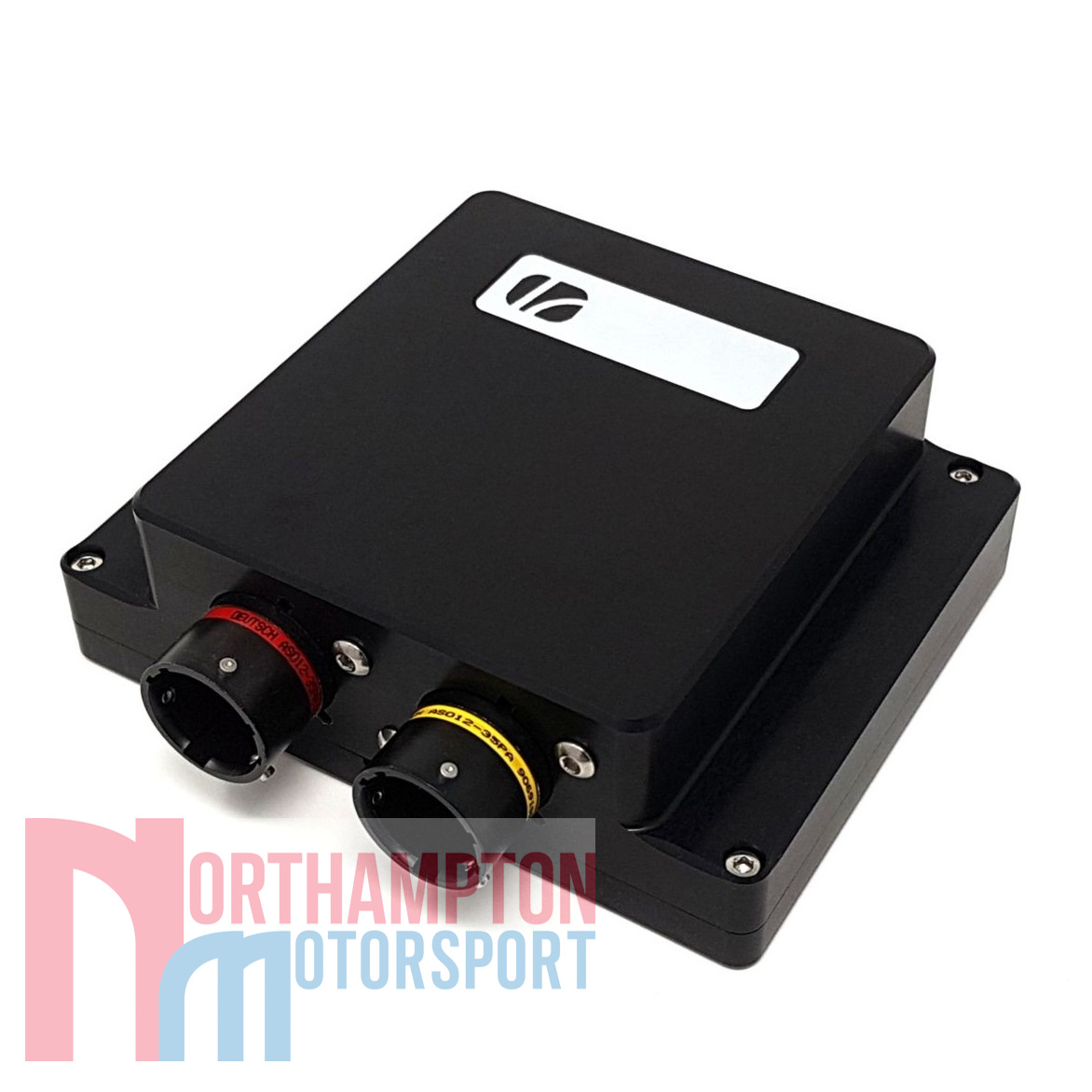

Life Racing Mini Comms Hub

£1,436.00 (+VAT)

The Life Racing Mini Comms Hub (or MCH) allows complex communications between non-compatible CAN devices. It features twin Ethernet, 2 fully flexible CAN busses and real-time maths capability as well as 10 physical inputs and standalone logging as standard (with or without a Life Racing ECU).

The MCH device is available in two variants: MCH-T (Top side connector) and MCH-E (End side connector). Please make your selection in the option below.

For more information and technical specification, please see the description below:

SKU: N/A Category: Tags: , ,

Description

Life Racing Mini Comms Hub Specification:

Processing

  • Powerful RISC CPU for advanced strategy execution
  • Real time maths up to 8000 operators a second

Inputs

  • 6 user configurable general purpose analogue sensor inputs
  • 4 user configurable switch inputs

Interfaces

  • Twin 100 MHz full duplex Ethernet for calibration, configuration and ECU streaming
  • Twin CAN 2.0B interfaces with fully flexible CAN configuration
  • RS232 serial interface

Memory

  • 1GB onboard logging memory either standalone or streaming from an LR ECU

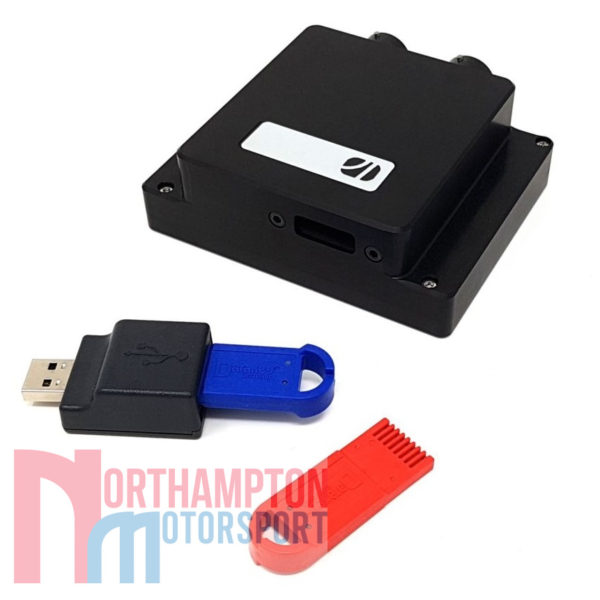

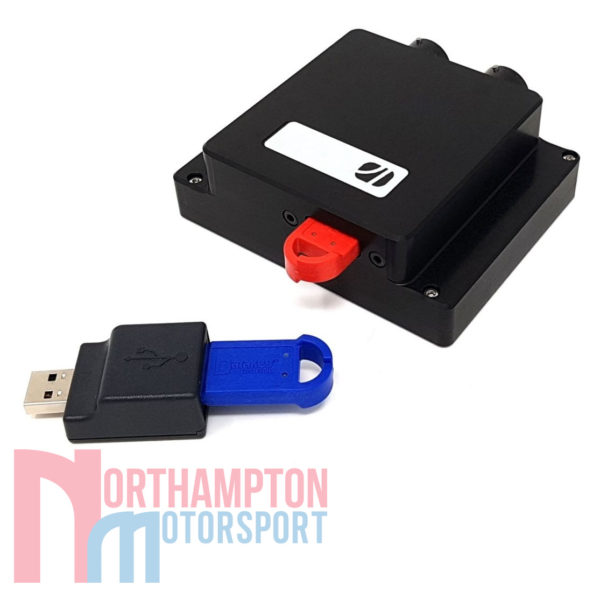

  • External USB connection for expanded logging capacity

Power Supply

  • 8V to 80V input voltage range with reverse polarity protection
  • Regulated 5V sensor supply output

Physical

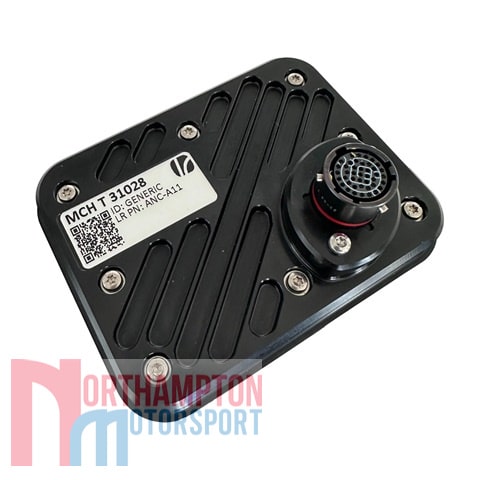

  • Souriau ‘8STA’ High Density 43 pin connector (x1)
  • CNC machined, black anodised aluminium case
  • Maximum dimensions including the connectors are:
    • MCH-T: 113 x 87.5 x 42.55 mm
    • MCH-E: To follow
  • Total mass ~235 grams

Warranty and Servicing

  • 1 year limited warranty when used within supplied specification.

Download Files

life-racing-mini-comms-hub-datasheet-v3.2

Mini Comms Hub Data Sheet (v3.2)

Please note: The Life Racing Mini Comms Hub is not supplied with a connector kit but is available separately if required.

Here at Northampton Motorsport, we also offer a full wiring and fitting service as well as engine calibration on our in house Superflow AD30 2 wheel drive chassis dyno. For more information, please contact us and a member of our team would be happy to assist with your enquiry:

Contact Us

Estimated dispatch time within 5 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
