Description

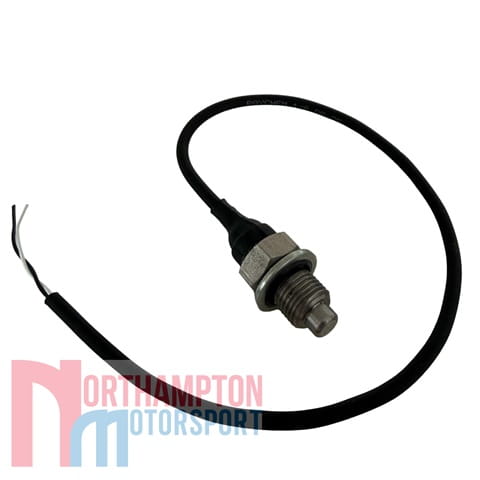

NTC1 Fluid Temperature Sensor from Northampton Motorsport suitable for use in demanding motorsport and automotive testing applications. This high performance NTC (Negative Temperature Coefficient) sensor can be used to measure brake, coolant, fuel, oil and water temperatures. The calibration of each sensor is well defined and can be installed into most common ECUs and data logging systems (the calibration is the same as the Bosch 026 Sensor). For more information, please see the specification below:
NTC1 Fluid Temperature Sensor Specification:
- Type: Fluid Temperature Sensor
- Construction: Stainless Steel
- Sensor Type: 2500 ohm @ 25°C
- Cable Length: 250mm
- Temperature range: -30°C to 150°C
- Accuracy: ± 1°C
- Electrical Connection: Spec 55 Cable + DR25
Available Thread sizes:
- M6 x 1mm
- M8 x 1mm
- M10 x 1mm
- M12 x 1.5mm
- 1/8th NPT
Please make your selection in the options above.
Estimated dispatch time within 3 working days.
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
