Description

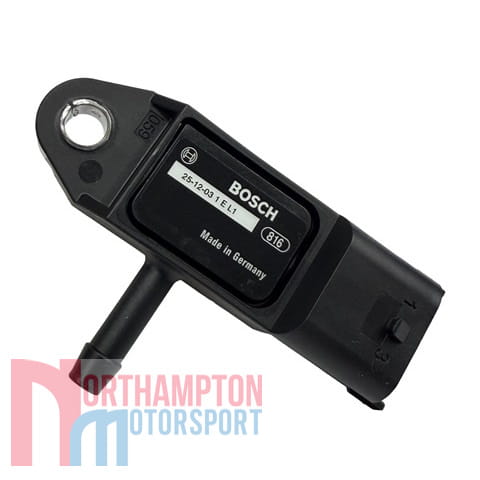

The Omex Map Sensor is a 3-bar manifold pressure sensor used for air pressure sensing. It is suitable for forced induction engines up to 2-bar boost pressure.
This is a genuine Bosch sensor which carries the usual high performance and reliability expected from a Bosch component. Suits start-up calibrations for current Omex ECUs.

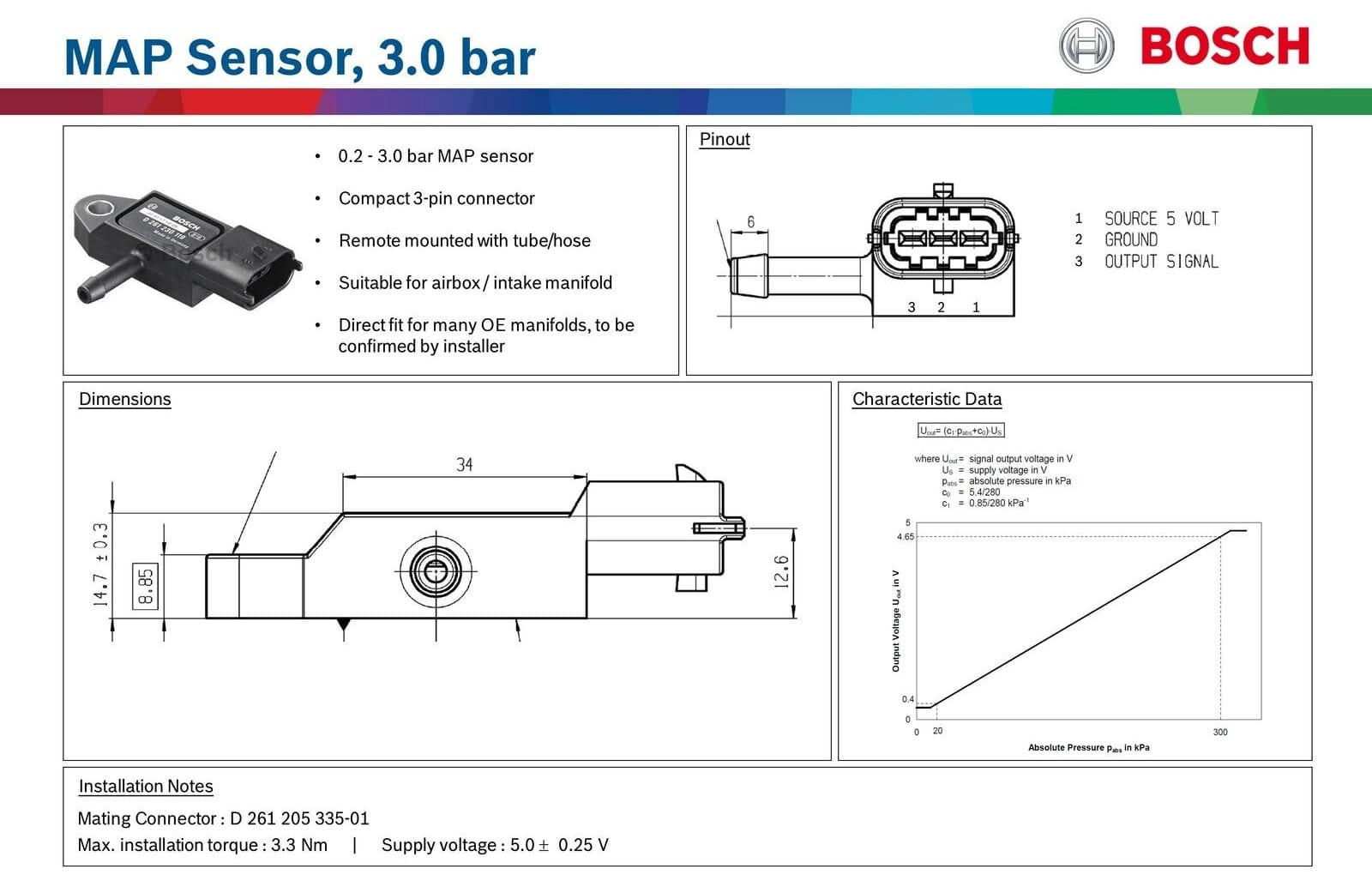

For more information and dimensions of this Omex Map Sensor, please see the technical drawing below.
Pinout
- Pin 1: +5V
- Pin 2: Ground
- Pin 3: Signal
Estimated dispatch time within 5 working days.
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
