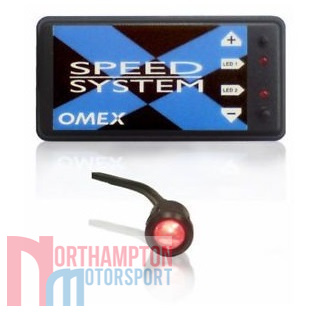

Omex Shift Light Pro

£103.00 (+VAT)

Omex Shift Light Pro is a shift light system which features the shift light on a lead, so ideally suited to smaller single seater or similar type cars where space is limited.

Trying to watch the vehicle’s rev counter to make these gear shifts takes your concentration away from the many other things you need to look at when driving. The Speed System’s large bright LED gives an unmissable visual indication to give you perfectly timed gear shifts, every time. Multiply these gained tenths of seconds per gear shift over an entire race, rally stage, sprint or hillclimb and you may have found the difference between losing and winning.

The Omex Shift Light Pro features the shift light on a remote lead so only the shift light itself needs to be on the dashboard. This is vital in small single seat race cars with tiny dashboard areas and ideal for a hidden ‘factory’ look on road cars. The Shift Light Pro can be triggered from any 0-12V engine speed trigger, typically the standard coil trigger wire or the standard tachometer trigger wire.

All Omex products are manufactured in the UK in an ISO9000 certified factory and are individually tested before sale, ensuring a consistently high quality product. The unit is epoxy filled giving it extreme resistance to vibration, shock, and water, giving a long life even in the most demanding motorsport environments. The Omex product range has been tested in a government authorised test centre proving resilience to (and low transmission of) electromagnetic interference and also making it legal for road vehicles in the UK and Europe.

Specification:

Rev Range

  • 2Cyl 1,000rpm – 20,000rpm
  • 4Cyl 1,000rpm – 20,000rpm
  • 6cyl 1,000rpm – 12,000rpm
  • 8cyl 1,000rpm – 10,000rpm

Accuracy

  • Adjustable in steps of 100rpm
  • Accurate to +/- 10rpm @ 6,000rpm

Light

  • 3000mcd, 10mm, red

Physical

  • Length: 78mm
  • Width: 39mm
  • Height: 21mm
  • Weight: 130g
  • Shift Light LED: 10mm
  • Two meters of wires from the main unit

Download Files

Download Files

omex_rev_limiter_with_shift_light_pro

Omex Shift Light Pro User Manual











Here at Northampton Motorsport, we also offer a full wiring and fitting service as well as engine calibration on our in house Superflow AD30 2 wheel drive chassis dyno. For more information, please contact us and a member of our team would be happy to assist with your enquiry:

Contact Us

Estimated dispatch time within 5 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
