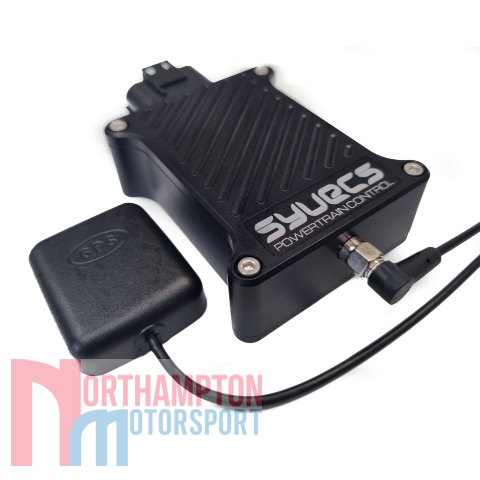

Syvecs 100HZ GPS Module

£750.00 (+VAT)


The Syvecs 100hz GPS Module has been designed to provide even more control for Syvecs engine control units with accurate global positioning, acceleration forces for 6 axis and GPS Speed. This Unit features fast positioning lock with hot restarts due to internal battery storing last positioning data.


  • Supports global GPS, Beidou, Galileo, GLONASS
  • Supports regional QZSS, SBAS
  • 16 million time-frequency hypothesis testing per sec
  • -148dBm cold start sensitivity
  • -165dBm tracking sensitivity
  • 29 second cold start TTFF
  • 3.5 second TTFF with AGPS
  • 1 second hot start
  • 2.0m CEP accuracy
  • Multipath detection and suppression
  • Jamming detection and mitigation
  • AGPS Support
  • Contains LNA, SAW Filter, TCXO, RTC Xtal
  • Works with active and passive antenna
  • On board active antenna short protection
  • On board active antenna detection

This is something that Syvecs dealers and customers have asked for quite some time in order to provide an accurate speed measurement that allows their advanced traction control strategy to be used on 4wd or drag cars. Circuit based cars gain huge benefits also being able to calibrate the ECUs traction control, torque management and warnings to be based off GPS position, allowing calibrators for example to limit torque and lower a slip target in different corners.

The following parameters are available from the Syvecs 100Hz GPS IMU Module:


  • GPS Lateral Position
  • GPS Longitude Position
  • GPS Speed
  • GPS Course
  • GPS Altitude
  • GPS Time and Date
  • Number of Locked Satellites
  • GPS Mode Letter
  • GPS Fix Quality
  • Lateral G Force
  • Longitudinal G Force
  • Vertical G Force
  • Roll
  • Pitch
  • Yaw

Installation Manual


Syvecs 100HZ GPS Module Installation Manual

The Syvecs 100HZ GPS Module is supported on all Syvecs ECU’s, Motec M1 Range and Bosch Motorsport ECU’s.

Estimated dispatch time within 5 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance
