Syvecs Calibration Switch

£65.00 (+VAT)


The Syvecs Calibration Switch is a simple universal multi-position switch used for map switching on almost any after-market ECU.

This Cal Switch has several uses from map switching, adjusting boost to fuelling and can also be installed to alter traction control. It can also be used for any other settings which you have programmed to corresponding CAL’s.

Hardware features:

  • Simple 2 wire connection
  • Up to 11 positions from a 5v external pull up
  • Adjustable detent lockout ring adjustable from 2 to 11 positions
  • Comes fitted with Deutsch 2 pin connector and supplied with mating pins and connector

Syvecs Calibration Switch Specification:

  • Outputs:
    • 11 positions via one signal wire
  • Power Supply:
    • 5v – 3k Ohm Pull up required if no internal pull up is available. (Syvecs Unipolar and Thermistors inputs has 3k Pull up already)
  • Physical:
    • Panel mount: Via 10mm hole
    • Max panel thickness: 4mm
    • Max external diameter: 30mm
    • Max shaft length: 42mm
    • Max overall length: 75mm
    • Mating fly-lead length: 80mm

Estimated dispatch time within 5 working days.

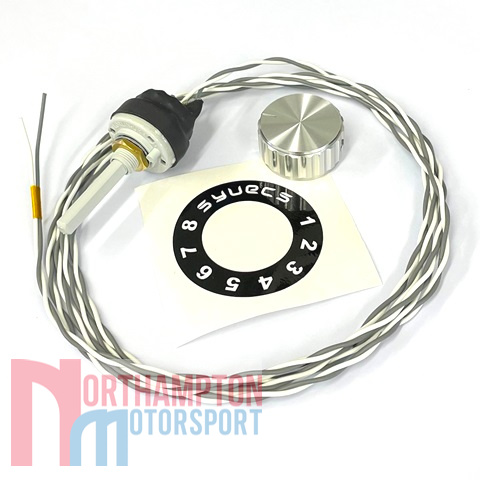

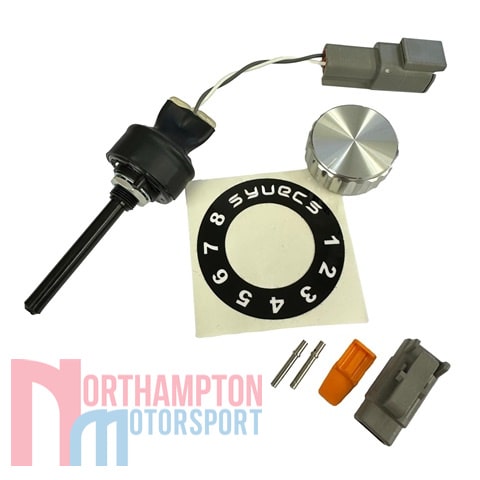

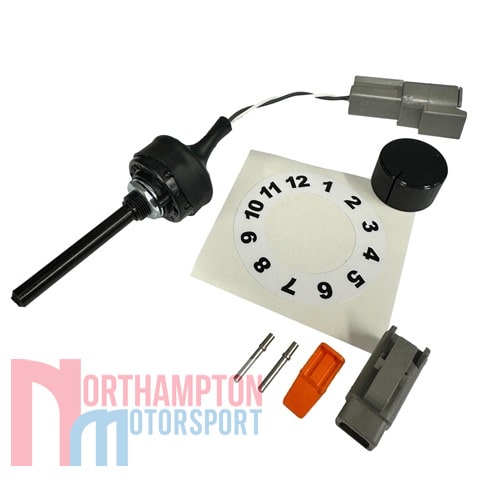

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
