Description

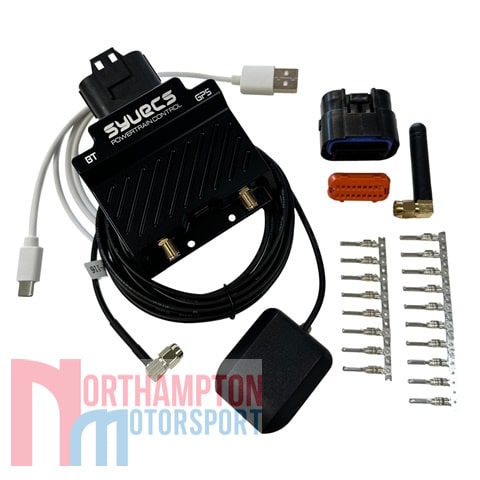

The Syvecs GPSBT is the evolution of the trusted 100 Hz GPS/IMU Module. It has been enhanced with Bluetooth Low Energy (BLE) connectivity and a host of new features to improve usability and expand compatibility.
Still built around a 100 Hz high-speed GPS receiver and 6-axis IMU for ultra-precise speed, position, and motion data, the Syvecs GPSBT adds powerful communication and control upgrades. It now includes both CAN and CAN FD interfaces, four digital inputs, four lowside outputs, OBD2 and BLE support to connect directly to smartphones, tablets, or vehicle infotainment systems.
Paired with the Syvecs Dash app, GPSBT unlocks real-time telemetry, lap timing, track mapping, and custom dashboards—ideal for motorsport, performance tuning, and live vehicle monitoring. Backward compatible and built to withstand demanding environments, GPSBT sets a new standard for onboard data capture and connectivity.
Communication Options:
DBC Import Function
- Supports importing any CAN DBC file
- Instantly compatible with major ECU systems (Syvecs, MoTeC, Pectel, Link, etc.)
OBD-II Functionality
- Read & clear DTCs (Diagnostic Trouble Codes) from any OBD-II–equipped vehicle
- Real-time data monitoring via standard OBD-II PIDs up to 200hz update rate depending on car CAN type
Car Selection Presets
- Preloaded configurations for vehicles (e.g., Nissan R35)
- Simplifies CAN bus mapping for commonly used models
CAN TX Options
- Transmit custom messages or “modes” back to the ECU
- Flexibility to emulate sensors or inject control commands
Extensive CAN integration
- Enables wireless pairing with:
- Smartphones & tablets (iOS & Android)
- In-dash head units (via BLE-capable interfaces)
Syvecs Dash Mobile Application:
Customizable Dash Layouts
- Multiple dashboard templates, all fully configurable
- Any data point can be displayed (e.g., RPM, temperatures, pressures, GPS speed)
Warning & Alert System
- Define thresholds on any CAN or internal sensor value
- Receive visual/audible alerts when limits are exceeded (e.g., oil pressure low, over-rev)
Performance Measurement
- With GPSBT’s 100 Hz GPS, capture highly accurate speed data
- Calculate 0–100 km/h, 100–200 km/h, ¼ mile times in real time
- Drag Tree option to see reaction times also
- Store best-run, quickest segment, and lap data
Track Mapping & Lap Timing
- GPS-based auto‐track detection: draws the circuit as you drive
- Automatic sector creation and timing: see best lap, sector times, etc.
- Ideal for racers who want immediate feedback without manual track setup
Live Video Overlay
- Stream video from your mobile device’s camera while driving
- Overlay CAN & GPS data onto recorded footage (e.g., speed, G-forces, RPM)
- Export annotated videos for analysis or sharing on social media
Data Logging
- Log any CAN-bus channels or internal GPS/IMU data to your mobile device’s storage
- Export CSV or native Syvecs Sview formats for post‐session analysis on a PC
Configurable I/O Control
- Remotely set up module’s digital Inputs/Outputs via the app
- Define input functions (e.g., lap-trigger switch, shift-light input)
- Define output behaviors (e.g., activate a warning light, control a relay)
- No need for a separate PC‐based configuration tool; everything happens in Syvecs Dash
Cross-Platform Support
- Available on both Apple iOS and Android
- Seamless updates via App Store or Google Play Store
Syvecs GPSBT Module Specification:
Specification
- Outputs:
- 4 x PWM Outputs – 2Amp Peak (100ms) / 1Amp Continuous
- 1 x 5V Sensor Supply (400ma Max)
- Inputs:
- 2 x Analogue (0-5V)
- 2 x Thermistor (0-5V)
- Interfaces:
- 1 x CAN 2.0B, user programmable
- 1 x CANFD, user programmable
- 1 x BLE (Bluetooth Low Energy) connectivity for wireless data exchange
- USB C For Updates and Configuration
- Power Supply:
- 6 to 26V ignition switched supply
- Physical:
- 70 x 90 x 25 (mm)
- Environmental:
- High-quality anodised CNC aluminium body with waterproofing
User Manual
Syvecs GPSBT User manual v1
