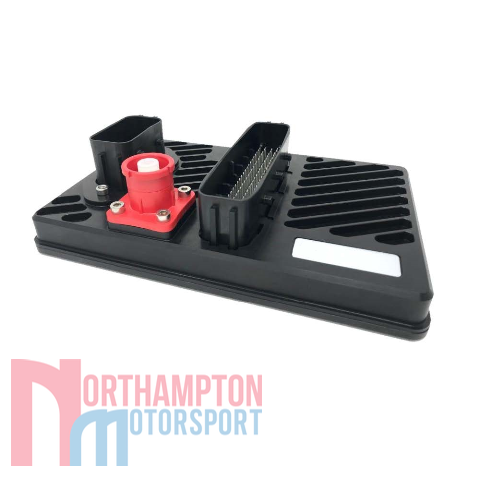

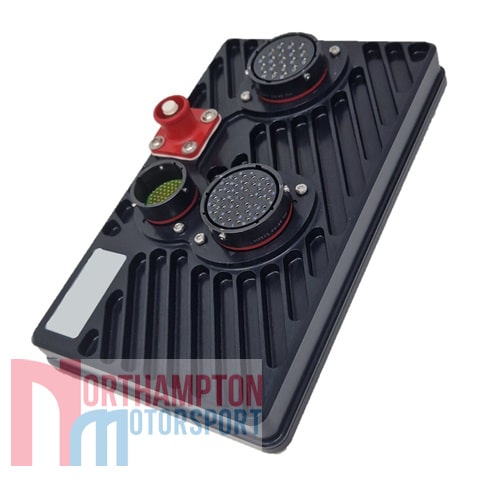

Syvecs PDUX3 Power Distributor Unit (PDU)

£2,055.00 (+VAT)

Syvecs PDUX3 Power Distribution unit has been designed to replace the use of a conventional relay box. It provides multi channel solid state logic driven processing, which is fully software configurable using the Syvecs PDU Cal tool. Features include logic inputs and power outputs with validation and debounce settings. RS232 and CAN provide communication to external displays and data loggers.

The PDUX3 offers advanced features such as the ability to sleep and wake via CAN bus messaging or by using hardware input pins as triggers. It also comes equipped with an impressive 34 programmable outputs in total, including 10 extremely capable multifunction outputs which can be defined by the user to operate in either discreet high-side or low-side switching, low-side PWM, Half or Full bridge operation. These flexible outputs, as well as the PDUX3 16 input channels, can be used to increase the I/O compliment of the Syvecs S7i, S7-Plus, S8 and S12 engine management systems connected using an extremely fast slave link via Canbus.

The PDUX3 is a high power motorsport Power Distribution Unit (PDU). Combines a robust billet aluminium case and the very latest power driving technology with the highest efficiency in the industry. A total of 34 output channels with a max current capacity of 350A.

Syvecs PDUX3 full Specification:

Features

  • Schematic based calibration including logic simulation tool
  • Low power state woken on physical Input, CAN activity, or specific CAN frame

Outputs

  • 34 Main Power – High Side Outputs (Outputs 1-20 rated to 30A, Outputs 21-34 rated to 15A)
    • Outputs 1-10 are multifunction high side, low side, PW, H-Bridge, soft start outputs (peak current 100A)
    • Outputs 10-34 High Side outputs (peak current 125A)
    • Output teaming to support very high current devices possible
  • 4 Additional Low Side Outputs (PWM capable – 8amps)
  • All outputs short circuit and thermally protected with multi-stage in-rush control
  • Combined diagnostic output with reset Input
  • Up to 64 soft outputs via CAN

Inputs

  • 16 physical switch inputs or, when slaved, general purpose analogue sensor inputs including:
    • 8x frequency measurement inputs (4 optionally bl-polar)
    • software selectable 3k ohm pull-up resistors
    • 4x Inputs capable of programmable “wake up” functionality
  • Dedicated wake pin
  • Up to 64 soft inputs via CAN with configurable validation and debounce time

Interfaces

  • 2 x 100Mbit/s full duplex Ethernet (can be used as Ethernet switch)
  • 3 x CAN 2.0B
  • RS232C serial interface
  • LIN BUs

Power Supply

  • 6.5V to 40V input voltage
  • Dedicated 12V logic power input
  • Regulated 5V sensor supply output with short circuit protection

Physical

  • 2 Leavy-seal connectors with a total of 113 pins
  • 1 x Deutsch HDP 47 way Connector
  • Amphenol SurLok Power Stud
  • Machined Aluminium enclosure
  • 200x130x54mm (including connectors)
  • 850grams
  • Operating Temperature up to +85C

Technical Drawing

syvecs_pdux3_power_distributor_unit_pdu_technical_drawing

PDUX3 Technical Drawing
