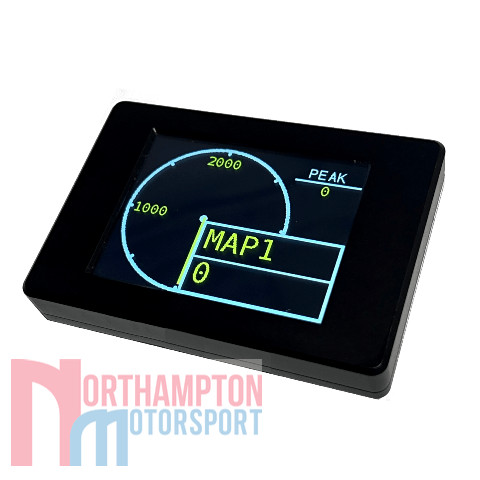

Syvecs TinyDash V2 Touchscreen

• Outputs:
  • 2 x PWM Outputs – 2Amp Peak (100ms) / 1Amp Continuous
  • 1 x 5V Sensor Supply (400ma Max)
• Inputs:
  • 3 Analogue/Thermistor Inputs (0-5V) with software pull-up
• Interfaces:
  • TouchScreen
  • USB C for updates and configuration
  • 1 x CAN 2.0B, user programmable
• Power Supply:
  • 6 to 26V ignition switched supply
• Physical:
  • 78 x 50 x 20 (mm)
• Environmental:
  • High-quality anodised CNC aluminium body with waterproofing
  • Tyco Spec44 wire ensures a rigorous and long-term use

The Syvecs TinyDash V2 has a resistive touch screen panel allowing users to be able to change the internal CalSelect on the TinyDash, the internal Cal Select as default changes the display layout but also allows for different calibration changes inside the Tinydash for on-board strategies like boost control.

Pressing in each top corner of the screen changes the CalSelect up and down.

Pressing the middle of the screen activates the Map Switching function of the TinyDash and will make the items EcuCalSelect, AlsSelect and TCSelect update. These can these be transmitted by CANBus to your Engine Control Module.

Syvecs is known industry wide for their OEM/ECU CAN data abilities and the TinyDash is no exception. They have taken their most popular CAN database decoders and placed them within the TinyDash allowing for direct communication to many powertrain CAN buses. This enables users to get information quickly from their vehicle or after-market ECU displayed on the screen without the limitations of the ODBII protocol. A list of supported vehicles/Ecus can be found below.

Supported OEM CAN Platforms:

Supported Aftermarket ECU CAN Platforms:

Should a vehicle/ECU not be listed, installers can use the Syvecs Generic CAN receive and configure their own.

The V2 version of the Syvecs TinyDash is now sold in a waterproof case allows it to be used in even tougher environments for ATV and Marine applications

Two low current PWM outputs are included within the TinyDash. These are user configurable via our SCAL software. We have even included a Wastegate strategy and Custom PWM strategy to compliment them.

Three analogue inputs are also onboard, each with software selectable pull-ups and allow for many standard analogue and temperature sensors. It is even possible to send this sensor data to your engine controller via CAN increasing system I/O, for example a Calibration Switch.

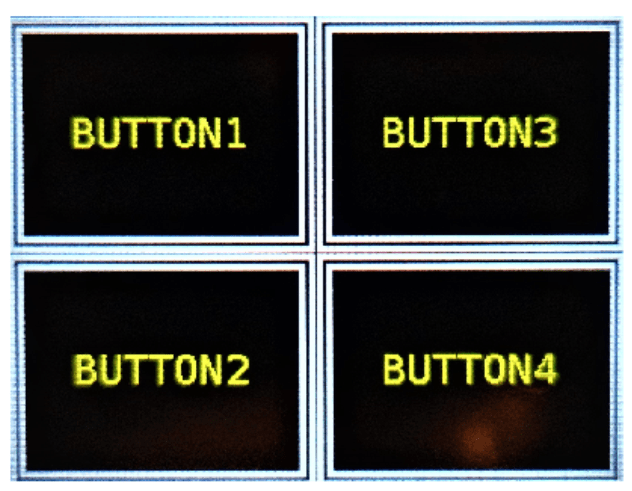

The TinyDash V2 also has the ability to be a Keypad, allow custom buttons to be created which have the option to be toggled as a momentary button or latched.

These buttons can then be renamed in Scal and assigned to custom maps in Scal or Transmitted over CANBus to other modules.

The TinyDash has many customisable display options allowing for tighter integration into existing vehicle colour schemes along with an adjustable backlight which can be controlled via a CAN or an available analogue input.

Users are also able to configure warnings and alerts for temperature, lambda and more.

Advanced, yet easy to use software . Flexible Input and Output functions, Full CAN BUS configuration, Alarm setups, Layout adjustments plus lots more. Syvecs frequently have Firmware and Software upgrades. Please checkout the Syvecs Forum for more information.

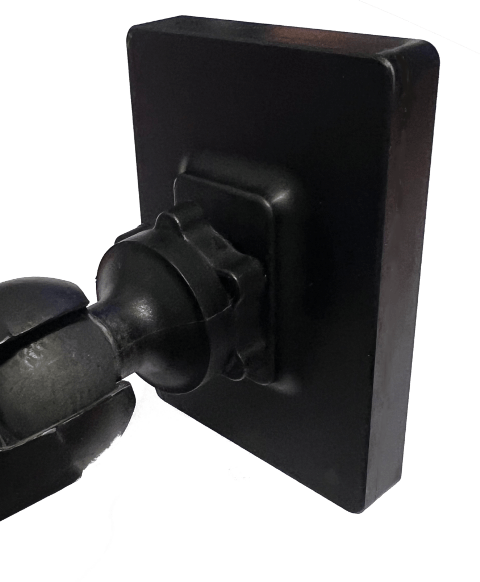

The Syvecs TinyDash V2 can be fitted with many off the shelf 1/4in camera brackets offering a strong and firm installation which still allow access to the USB communication port.

The Syvecs TinyDash V2 is also a boost controller!

Wire in a Map sensor, Cal Switch and a boost solenoid and enjoy our wastegate control strategies from our ECUs with Closed loop PID targeting and Phase/Antiphase control.
