Name: CAN Shift Light
SKU: ECUM-RRR08
Availability: InStock

Description

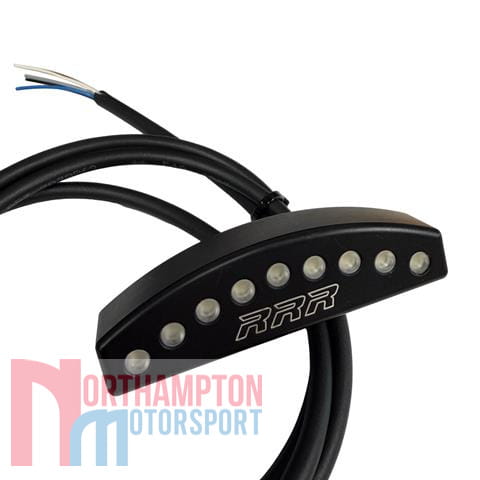

This CAN Shift Light module (CSL) was developed in response to the lack of fully standalone adjustable shift lights available on the market today. Most products found were either basic lights with minimal functionality or required additional modules to operate (they are slave units). This shift light is fully independent, highly functional, easy to set up and compatible with any car, without hassle.

What’s in the box?

CSL module (x1)
USB-Communication lead (x1)

The CAN Shift Light module gives you access to several advanced features. It includes an auto-dimming option for when the lights are on, an additional pit lane limiter notification and alarm alerts, which all can be either hardwired or activated via a CAN-bus message. You can also customise the light pattern based on gear and RPM, as well as use a fully customised colours template. The module connects via two twisted wires of CAN-bus, which can be hooked up to your aftermarket ECU or standard OBD connector.

Please note: The 12V supply needs to be connected to a switchable power supply, not to the OBD 12V, which is permanent.

The module also comes with several predefined CAN-bus settings, making it easy to use with a variety of standalone ECUs and road cars which are still utilising the stock ECU. You can simply select the appropriate CAN-bus definitions from a dropdown menu. A custom CAN-bus setup allows you to configure CSL to work with any car.

The Can Shift Light module delivers a professional-grade shift indication with precision engineering. Its aluminium CNC enclosure features Xylan coating for superior UV resistance, ensuring durability in demanding environments. German-engineered Mentor LED lenses provide exceptional clarity and visibility.

Configure via USB on the bench or connected to the car without vehicle connection, then monitor real-time CAN bus data and OBD2 compatibility during operation.

Adjust individual LED brightness and dimming settings to suit your specific requirements. Fully waterproof construction makes it ideal for motorcycles and open-cockpit vehicles. Benefit from continuous firmware updates.
