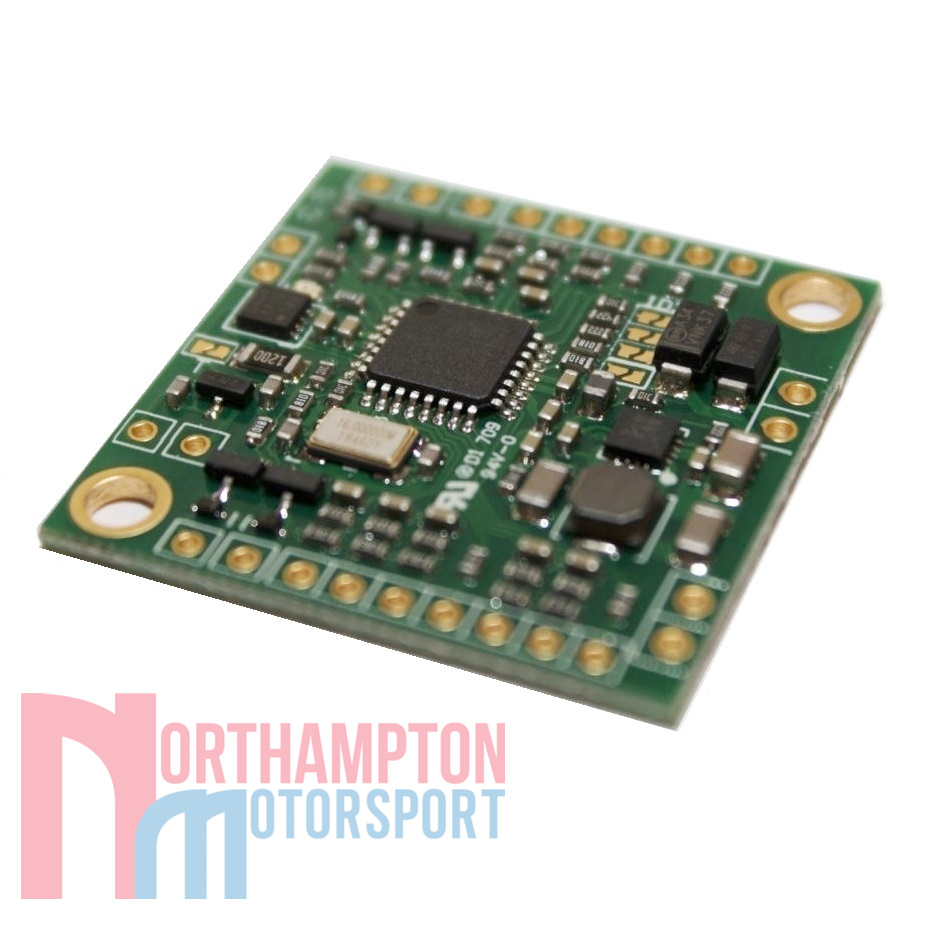

ECUMaster CAN Switch Board (V3)

£119.00 (+VAT)

ECU Master Can Switch board V3.

SKU: E40 Category: Tags: ,

A CAN switch board is a tiny device to allow easy transfer of up to 8 switch states and 8 analogue signals over the CAN bus. In addition to this, the device has 4 built-in low side outputs that can be activated with a CAN bus message. The main purpose of this board is to build custom steering wheel panels containing buttons, rotary switches and indicators.

The switchboard device is designed to work with EMU BLACK and PMU. It can also be used with any other devices with custom configurable CAN bus inputs.

Key Features

  • CAN BUS 2.0B
  • 500 or 1000kbps, user selectable
  • different CAN ID and CAN frame structures can be selected,
  • only 25x25mm in size,
  • 8 switch inputs (switched to ground)
  • 8 analogue inputs / rotary switch inputs, 0-5V, 10bits
  • 4 low side outputs (0.5A, resistive and inductive loads)
  • 6-22V power supply
  • +5V output for powering rotary switches, sensors and potentiometers
  • firmware upgrade over the CAN bus

Download Files

ecumaster_can_switch_board_v3

CAN Switch Board V3 User Manual













Previous versions

ecumaster_can_switch_baord_technical_drawing_v1

CAN Switch Board V1 Technical Drawing

ecumaster_can_switch_board_v1

CAN Switch Board V1 User Manual













Estimated dispatch time within 10 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
