Description
The Syvecs Fluid Temperature Sensor is engineered to measure fluid temperatures. These includes oil, water, or fuel. Its negative temperature coefficient (NTC) sensing element decreases resistance as temperature increases, enhancing conductivity.
Syvecs Fluid Temperature Sensor Key Features:
- Temperature Range: Operates effectively between -40°C and 150°C.
- Accuracy: ±1.4°C at 25°C; ±0.8°C at 100°C.
- Nominal Resistance: 2.5 kΩ ±6% at 20°C.
- Response Time: Less than 15 seconds (τ63) in still water.
- Mechanical Specifications:
- Male thread: M12 x 1.5
- Wrench size: 19 mm
- Installation torque: 18 Nm
- Weight (without wire): 28.3 g
- Sealing: Aluminium washer

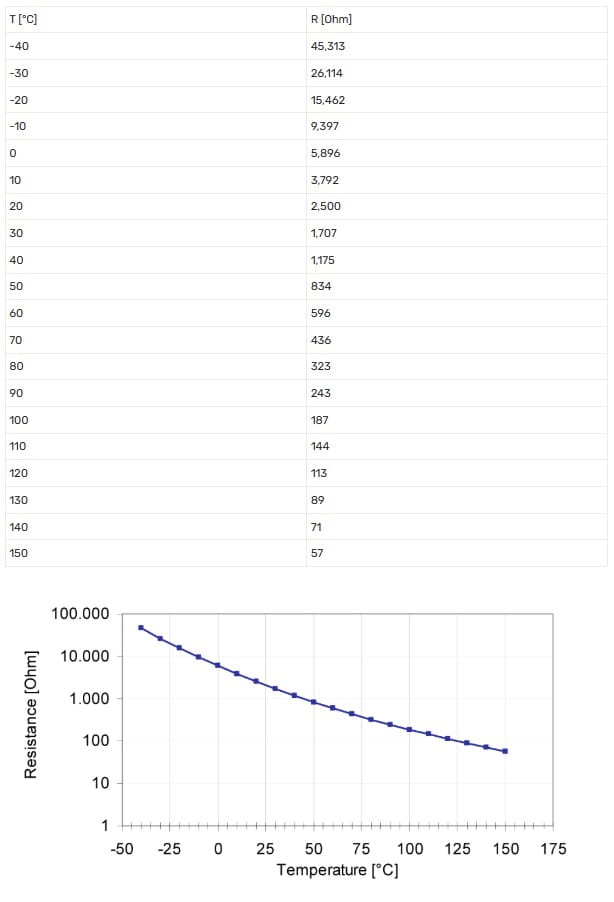

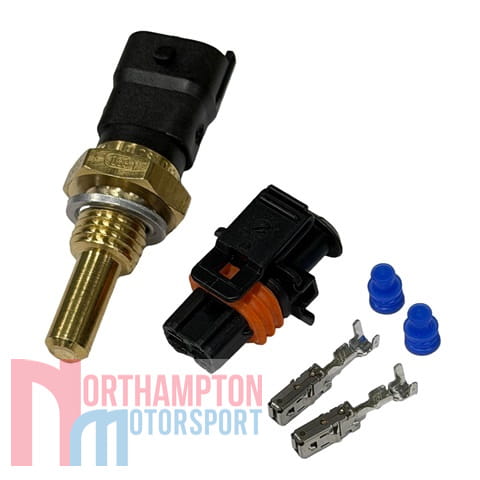

This Sensor is supplied with mating connector as pictured. For more information please see the technical information below:
Pin Out
- Pin 1: Signal +
- Pin 2: Signal –
User Manual
Fluid Temperature Sensor User Manual
Estimated dispatch time within 5 working days.

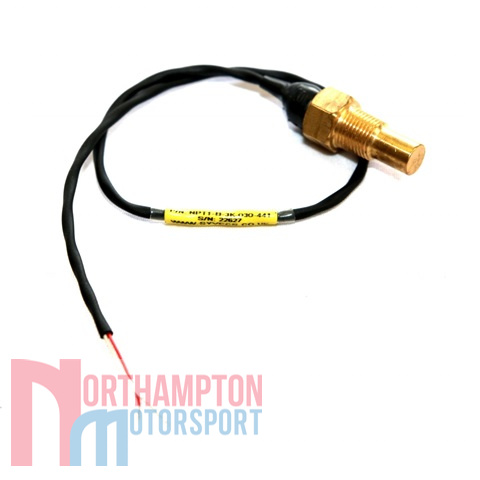

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
