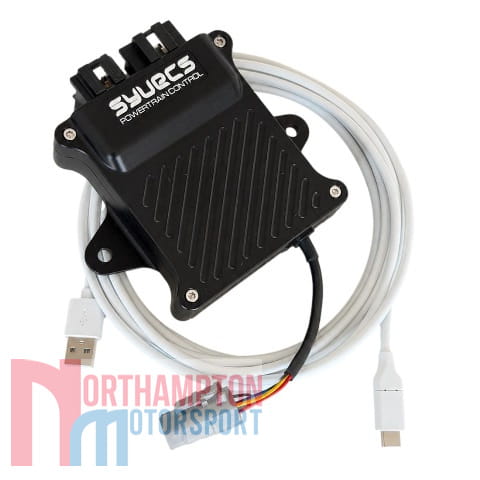

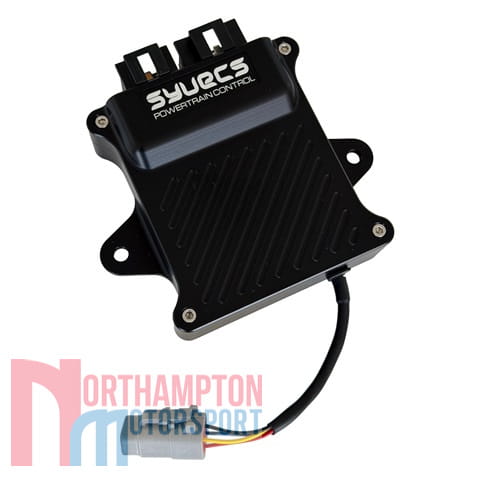

Syvecs Lamborghini Huracans AWD Controller

£900.00 (+VAT)

All Wheel Drive (AWD) control module from Syvecs suitable for the New Lamborghini Huracans. This Control Module is a standalone AWD/4WD/Centre Diff controller designed to offer more control than OEM Units.

OEM designed controllers are locked down and not adjustable, By simply fitting the Syvecs AWD Module, a whole new level of control is available. The unit allows users to optimise control and provide the best performance available from the powertrain.

This AWD controller also works with any Engine Management System!

Description

AWD controller from Syvecs designed specifically for the New Lamborghini Huracans. This controller replicates all the OEM CAN information as well as pick up lots of variable from the OEM Can to link into the control strategies like Steering Angle, Brake Pressure, Rpm, Tps, Lateral G, Yaw, Long G, Speeds, Temperatures and mode switches. Limp Protection options for large slip, high current, high temps which warn the driver but keep AWD active unlike the OEM controllers which shut down the outputs which is not ideal with high horsepower!

The Drive Mode Button on the R8 is used for Map switching so allows users to be able to change between AWD Select 1, 2, 3 which means all the maps below can be adjusted. You can also enable the burnout mode to be active when Hazards are on or if handbrake is present.

Syvecs also sell an optional loom to allow external Burnout switches to be mounted and Live adjustment potentiometers which gives drivers the ability to adjust the AWD Duty on the move or go 2wd from the flick of a switch.

With the use of the Syvecs Scal Software, users can connect to the Device and adjust over 40 maps to adjust the control of the solenoids/motors used in the AWD systems.

Available Maps:

4 x Adders with enable maps

  • Left Foot Braking
  • Front Slip
  • Rear Slip
  • Centre Slip

4 x Multipliers with enable maps

  • Steering Angle
  • AWD Temp
  • AWD Pressure
  • AWD Potentiometer
  • Tyre Diameter adjustment under sensors

2WD / Burnout Mode

  • Via Dedication Switched input
  • Via Can bus Message
  • Via OEM Functions

Limiters

  • Maximum Duty
  • Launch Control Limit
  • Duty Rate of Change
  • Decay/Hold Functions

Limp Mode

  • Over Current Protection
  • Over Slip Protection
  • Over Temp Protection

Cooling Pump control

  • AWD Cooling pump control logic

Datastream

  • The Syvecs AWD Unit also has a dedicated Can bus transmit area where users can send variables from the AWD to external control units for monitoring or to OEM Canbus system via custom Identifiers and byte structuring

Sensors / Switches

  • External sensors can be connected to the AWD module and then linearized in the Syvecs Scal Software

Specification:

Specification

  • Maximum of 30 Amps via pin sharing (HBR1&2 or HBR3&4)
  • Onboard Current Monitoring of each output
  • 2 x CanBus – Configurable Transmit Via Scal Program
  • 4 x Analog inputs for assigning Burnout Switch, Adjustment Pot, Pressure sensor and Temp sensor
  • USB Connection – Dedicated Scal software with full calibration control
  • VCDS Support – Communicates with OEM Tools and Replicates OEM Haldex Ecu’s
  • Mains Power control circuit based from Ignition Switch
  • Reverse Polarity Protection
  • Weatherproof Enclosure
  • 125c Temperature capable
  • 6v to 25v capable

Installation Manual

syvecs_lamborghini_huracans_awd_controller_installation_manual

Huracans AWD Controller Installation manual

Estimated dispatch time within 10 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
