Description

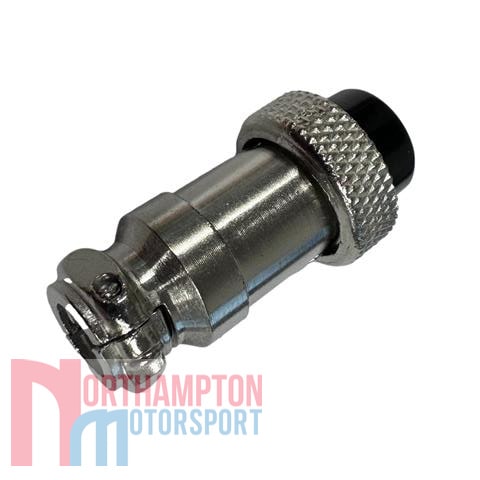

The ECUMaster Classic Serial Connector is used for enabling communication through the EMU classic serial port.
This connector is required when installing either an ECUMaster ADU5 or ADU7 to the ECUMaster Classic ECU. For more information, please see the serial protocol toggle below.
Pinout

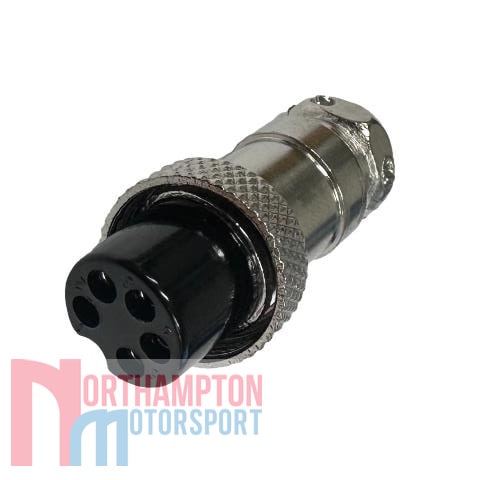

ECUMaster Classic Serial Connector Pinout:
- Pin 1: Rx (Serial receive)
- Pin 2: Tx (Serial transmit)
- Pin 3: +3,3v
- Pin 4: Ground
- Pin 5: +5v
Serial Protocol
EMU Classic Serial Protocol
