Description

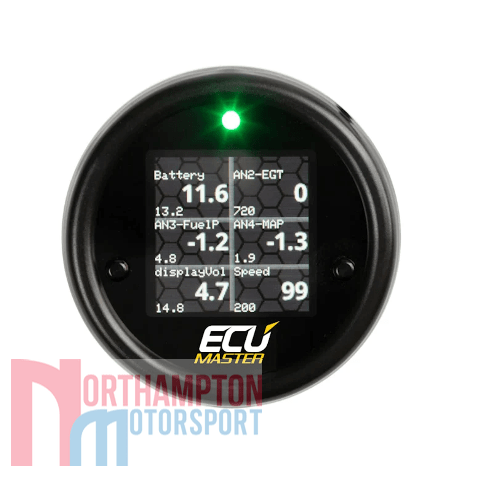

The ECUMaster MFD15 is a powerful 52mm Can-Bus multi display used for monitoring and displaying your vehicle’s performance. The device is result of cooperation between ECUMaster and Can_Checked.

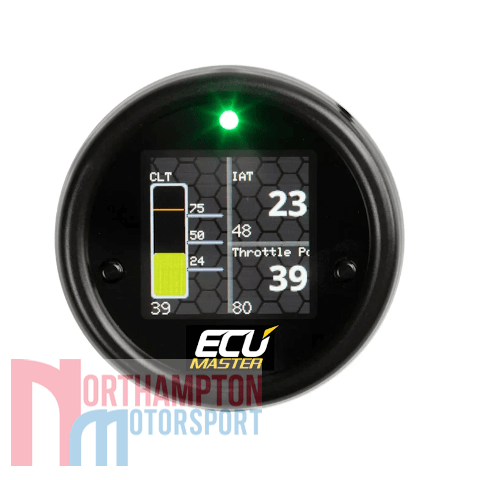

It features wireless access to a complete Can-Bus database, 6 analogue inputs, customizable alarms and various view displays. These views include either 6-fold, 4-fold, double value, double bar, circular, single pointer and double value plus bar. For more information and full technical specification, please see the User Manual in the toggle at the bottom of this listing.
It has a compact 52mm installation diameter and only 12.5mm depth, making it easy to install in any car. Get superior performance, reliability and efficiency with the ECUMaster MFD15.
Online logging is available with an additional license. It enables you to log your data with your smartphone and save the log for future analysis.

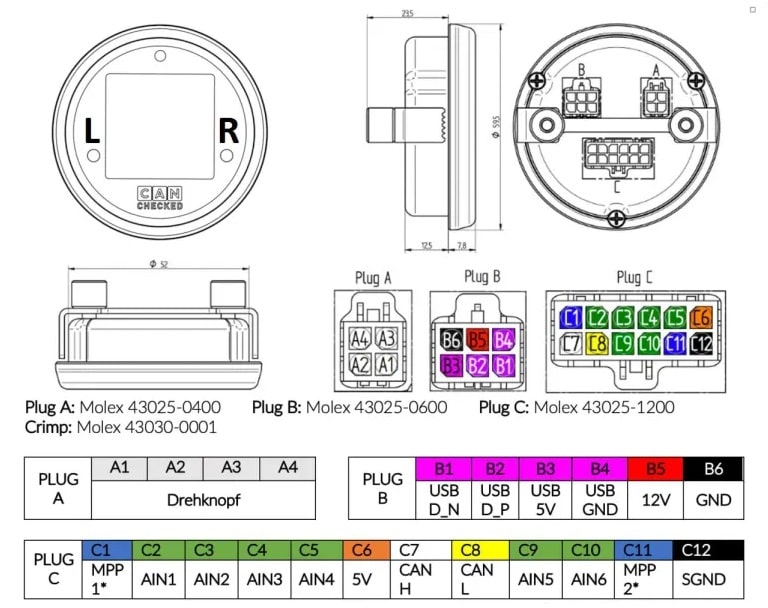

Pinout & Dimensions
Please note: The wiring diagram above is viewed from cable entry side of the connector.
User Manual
ECUMaster MFD15 User Manual (Gen2)
Estimated dispatch time within 3 working days.

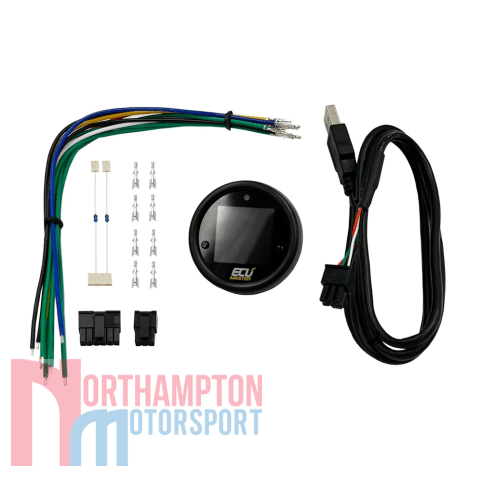

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
