Life Racing D8 Dash

£1,810.00£2,880.00 (+VAT)

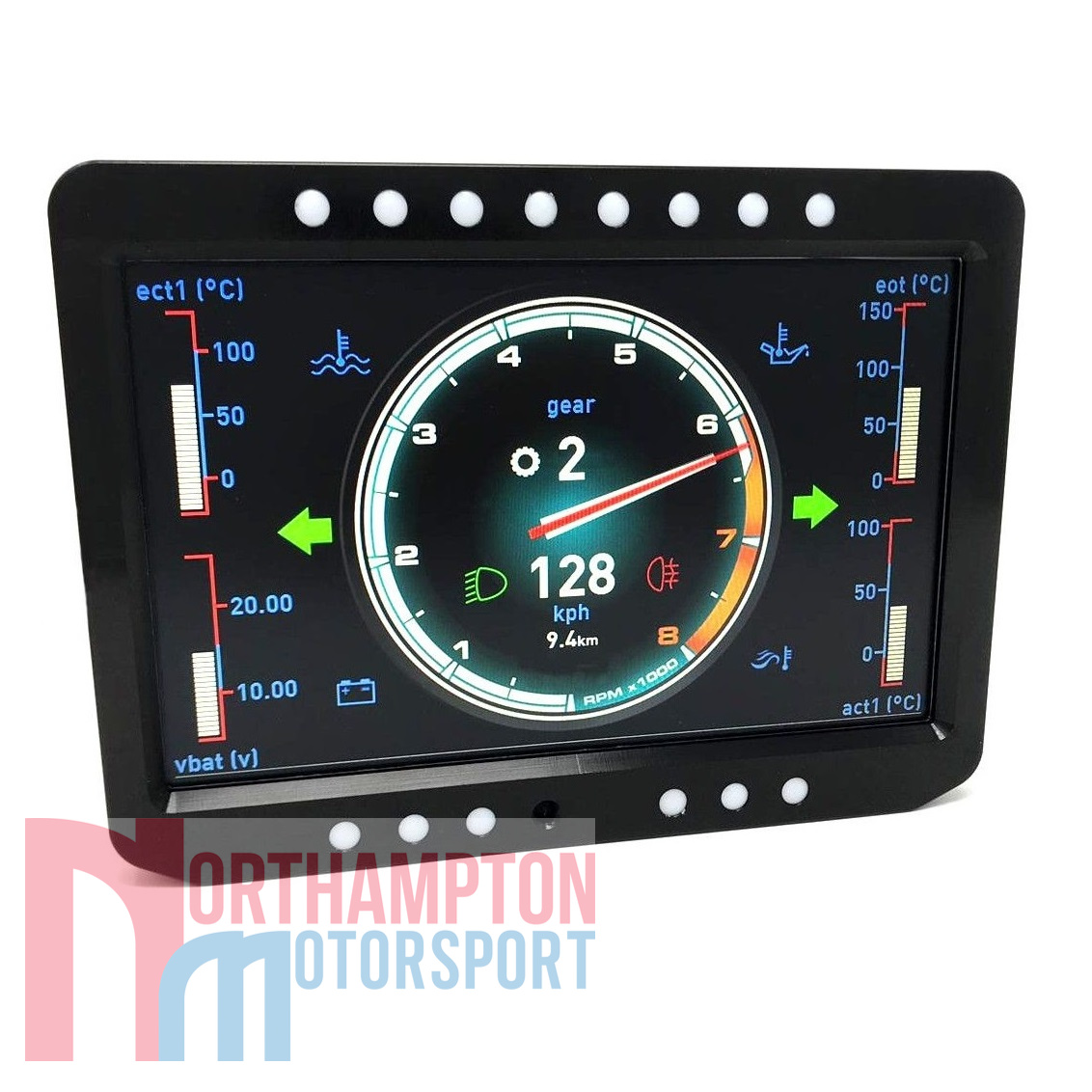

The D8 Digital Dash from Life Racing is a large format motorsport dash is a fully configurable high-resolution 8″ display with two ethernet port and two CAN 2.0b. User configurable inputs and outputs as well as math’s functions and fully user configurable shift and warning light operation.

This D8 Dash is available in either Basic, Club or Pro. Full details can be found in the Specification below and please make your selection whilst adding the dash to the basket.

Clear
SKU: N/A Category: Tags: , ,

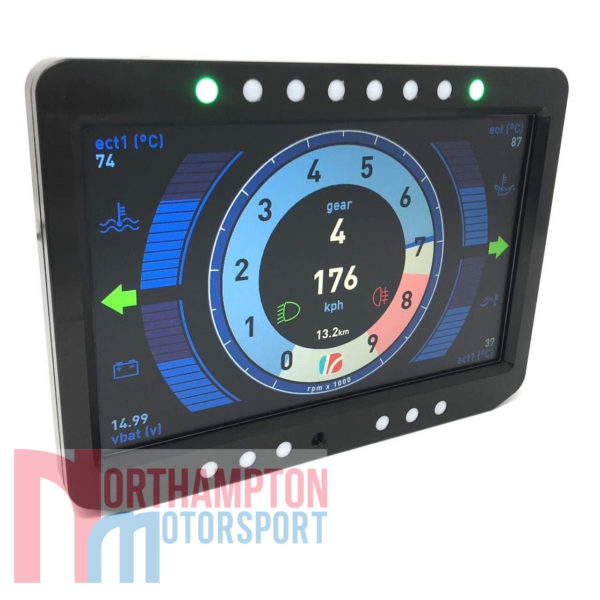

The Life Racing D8 Dash is an 8” Full Colour Sunlight readable WVGA display with 8 RGB high brightness ‘shift’ LEDs, 6 RGB general purpose / warning LEDs as well as 10 general purpose analogue inputs for sensors, 6 switch inputs and 4 outputs. 2 flexible CAN2.0B ports, RS232, twin Ethernet ports and real time maths operations allow it to be used as a fully featured central hub for a single connection point.

The D8 can log all channels (physical, CAN and maths) to USB at individually configured logging rates or alternatively stream the logged data from LR ECUs (F88, F90, etc). The D8 can be configured using PC software or by an external keypad controller. This allows custom layouts, easy page navigation and programmable driver aids, warnings and alarms. All functions can be simulated in software or by the playback of data files (.LRD) before programming.

Specification:

Processing

  • Powerful RISC CPU for advanced strategy execution
  • Real time maths up to 8000 operators a second

Display

  • 8” WVGA ultra bright anti-glare screen with intelligent auto dimming
  • 8 RGB configurable high intensity shift lights
  • 6 RGB configurable warning lights

Inputs

  • Up to 10 user configurable general purpose analogue sensor inputs
  • Up to 6 user configurable switch inputs

Outputs

  • Up to 2 user configurable PWM and 2 discreet low-side outputs (2A max, 4A total)

Interfaces

  • Twin 100 MHz full duplex Ethernet for calibration, configuration and ECU streaming
  • 2 CAN 2.0B interfaces with fully flexible CAN configuration
  • RS232 serial interface
  • USB 2.0 for bulk data storage on USB stick (FAT and FAT32 USB formats supported only)

Memory

  • Unlimited USB logging memory either standalone or streaming from an LR ECU

Power Supply

  • 8V to 80V input voltage range with reverse polarity protection
  • 2x regulated 5V sensor supply outputs (100mA)

Physical

  • 55Way Deutsch Autosport connector
  • CNC machined, black anodised aluminium case
  • Maximum dimensions including the connector are 191 x 132 x 55 mm
  • Total mass is ~840 grams

Available Upgrade Features

  • Expanded I/O
  • Complex Maths (upgrade to 8000 operators a second)
  • CANtx
  • USB logging

All of the additional upgrade features for the Life Racing D8 Dash are available after your purchase for an additional charge. Please note that some of these additions come ready installed depending on the spec of ECU ordered. Please see the toggle below for further information.

D8 Dash Comparison

  • D8 Basic
    • Expanded I/O: No
    • Complex Math: No
    • USB logging: No
    • CANtx: No
  • D8 Club
    • Expanded I/O: No
    • Complex Math: Yes
    • CANtx: Yes
    • USB logging: No
  • D8 Pro
    • Expanded I/O: Yes
    • Complex Math: Yes
    • CANtx: Yes
    • USB logging: Yes

Please make your selection whilst adding the dash to the basket.

Warranty and Servicing

  • 1 year limited warranty when used within supplied specification

Download Files

life_racing_d8_dash_dats_sheet_v2.2

Download D8 Data Sheet











Here at Northampton Motorsport, we also offer a full wiring and fitting service as well as engine calibration on our in house Superflow AD30 2 wheel drive chassis dyno. For more information, please contact us and a member of our team would be happy to assist with your enquiry:

Contact Us

All ECU’s are configured to order so the lead times can vary. Estimated dispatch time within 10 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
