Description

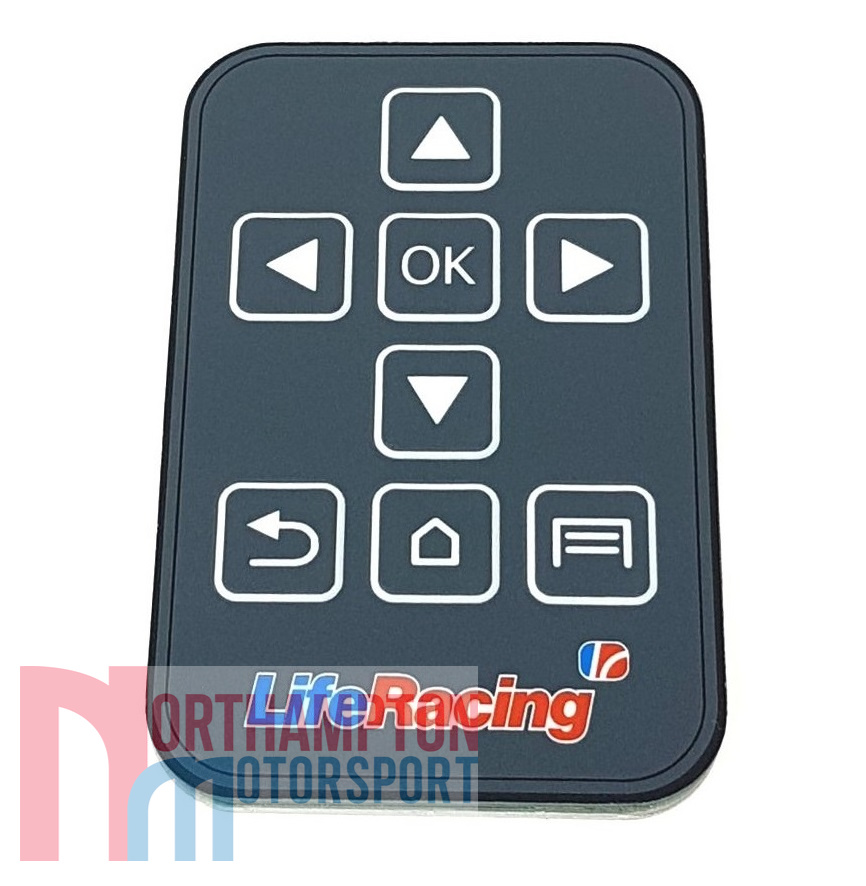

The Life Racing Dash Keypad allows full control of the dash and is required for most ‘in dash’ editing. The keypad can be mounted using ‘dual lock’ or similar or by using the four M3 nut inserts in the back panel, taking care to not push the studs through the membrane. However, it does not need to be permanently connected for the dash to operate. It is recommended to secure the cable once desired angle is determined.
If permanent, it has the option of connecting external switches for more convenient use while driving. The ‘Right,’ ‘Left’ and ‘OK’ functions can be separately mounted externally by connecting the relevant wire to the LR Keypad Input through normally open momentary switches. The special item “AN-KEYPAD8” must be assigned to the analogue input used.
Download Files
Please see page 6 for full specification and pinout for the Life Racing Dash Keypad.
Here at Northampton Motorsport, we also offer a full wiring and fitting service as well as engine calibration on our in house Superflow AD30 2 wheel drive chassis dyno. For more information, please contact us and a member of our team would be happy to assist with your enquiry:
All ECU’s are configured to order so the lead times can vary. Estimated dispatch time within 10 working days.
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
