Life Racing SD4 Pro Racing Wheel

£6,215.00£6,835.00 (+VAT)

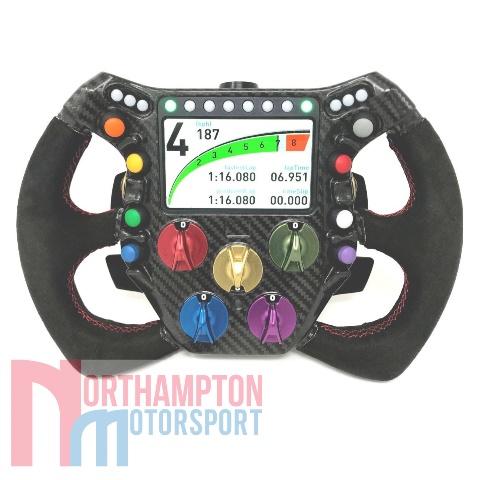

The SD4 Racing Wheel by Life Racing is an ergonomically shaped lightweight carbon racing wheel with an integrated high resolution 4.3″ display fully configurable and customisable switches and LED operation. Up to 10 buttons (including isolated radio button) and five multifunction rotary switches. There are options to include digital paddle levers for UP and DOWN gear change requests as well as two analogue progressive levers which can be used to control features such as automatic clutch operation. Two CAN2.0B buses, and twin Ethernet connections mean the SD4 retains the capability and flexibility to act as a central hub in a vehicles communication system.

Clear
SKU: DIS-B02 Categories: , Tags: , , ,

The SD4 can be configured using PC software or on the wheel itself with keypad inputs. This allows custom layouts, easy page navigation and programmable driver aids, warnings and alarms. All functions can be simulated in software or by the playback of data files (.LRD) before programming.

SD4 Specification:

Processing

  • Powerful RISC CPU for advanced strategy execution
  • Real time maths up to 8000 operators a second

Display

  • 3” WVGA ultra bright anti-glare screen with intelligent auto dimming
  • 8 RGB configurable high intensity shift lights
  • 6 RGB configurable warning lights

Inputs

  • 10 user configurable snap action switches
  • 5 user configurable 10 position rotary inputs
  • 2 Gear paddle inputs
  • 2 Progressive clutch paddle inputs
  • Up to 3 external switch inputs

Outputs

  • Up to 3 user configurable discrete low side outputs
  • Dedicated Radio Output – functional even if power is lost

Interfaces

  • Twin 100 MHz Ethernet for calibration, configuration and ECU streaming
  • 2 CAN 2.0B interfaces with fully flexible CAN configuration
  • RS232 serial interface

Additional Upgrade Features

  • Clutch Paddles

If you would like to add Clutch paddles to your racing wheel, please make your selection whilst adding the dash to the basket in the option at the top of the listing.

Power Supply

  • 8V to 80V input voltage range with reverse polarity protection

Physical

  • 13Way Deutsch Autosport quick release column connector
  • 9way Deutsch Autosport curly connector
  • 8way Lemo connector
  • Full carbon fibre body and optional custom grips
  • Maximum dimensions not including the quick release structure are 280 x 195 x 60mm
  • Total mass is ~875 grams (PRO spec inc standard grips and paddles)

Warranty and Servicing

  • This equipment comes with a 1 year warranty against manufacturing defects and failures however misuse or damage will not be covered under warranty.

Download Files

life_racing_sd4_racing_wheel_data_sheet

Download SD4 Data Sheet











Here at Northampton Motorsport, we also offer a full wiring and fitting service as well as engine calibration on our in house Superflow AD30 2 wheel drive chassis dyno. For more information, please contact us and a member of our team would be happy to assist with your enquiry:

Contact Us

All ECU’s are configured to order so the lead times can vary. Estimated dispatch time within 10 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
