Life Racing D4 Dash

£1,200.00£1,970.00 (+VAT)

The D4 Dash from Life Racing is a 4.3” Full Colour Sunlight readable WVGA display with 6 general purpose analogue inputs for sensors and 4 switch inputs. 2 flexible CAN2.0B ports, RS232, twin Ethernet ports and real time maths operations allow it to be used as a fully featured central hub for a single connection point. The D4 can log all channels (physical, CAN and maths) to USB at individually configured logging rates or alternatively stream the logged data from LR ECUs (F88, F90, etc).

Clear
SKU: N/A Category: Tags: , ,

The D4 Dash can be configured using PC software or by an external keypad controller. This allows custom layouts, easy page navigation and programmable driver aids, warnings and alarms. All functions can be simulated in software or by the playback of data files (.LRD) before programming.

Please note, a 50 way connector is required for installation which is available separately.

Specification:

Processing

  • Powerful RISC CPU for advanced strategy execution
  • Real time maths up to 8000 operators a second

Display

  • 3” WVGA ultra bright anti-glare screen with intelligent auto dimming

Inputs

  • 6 user configurable general purpose analogue sensor inputs
  • 4 user configurable switch inputs

Interfaces

  • Twin 100 MHz full duplex Ethernet for calibration, configuration and ECU streaming
  • 2 CAN 2.0B interfaces with fully flexible CAN configuration
  • RS232 serial interface
  • USB 2.0 for bulk data storage on USB stick (FAT and FAT32 USB formats supported only)

Memory

  • Unlimited USB logging memory either standalone or streaming from an LR ECU

Power Supply

  • 8V to 80V input voltage range with reverse polarity protection
  • Regulated 5V sensor supply output

Physical

  • 50Way D-type connector
  • CNC machined, black anodised aluminium case
  • Class leading slim profile for flat panel mounting
  • Maximum dimensions including the connector are 119.5 x 81 x 33.7 mm
  • Total mass is ~215 grams

D4 Dash Model Comparison

  • D4 Basic
    • Complex Math: No
    • CANtx: No
    • USB logging: No
  • D4 Club
    • Complex Math: Yes
    • CANtx: Yes
    • USB logging: No
  • D4 Pro
    • Complex Math: Yes
    • CANtx: Yes
    • USB logging: Yes

Please make your selection whilst adding the dash to the basket.

Available Upgrade Features

  • Complex Maths (upgrade to 8000 operators a second)
  • CANtx
  • USB logging

All upgrade features can be added separately for an additional cost. Please see the toggle above to check what features come with the D4 Dash as standard.

Processing

Warranty and Servicing:

  • 1 year limited warranty when used within supplied specification

Processing

Download Files

life_racing_d4_dash_datasheet_v2.2

Download D4 Dash Data Sheet











Here at Northampton Motorsport, we also offer a full wiring and fitting service as well as engine calibration on our in house Superflow AD30 2 wheel drive chassis dyno. For more information, please contact us and a member of our team would be happy to assist with your enquiry:

Contact Us

All ECU’s are configured to order so the lead times can vary. Estimated dispatch time within 10 working days.

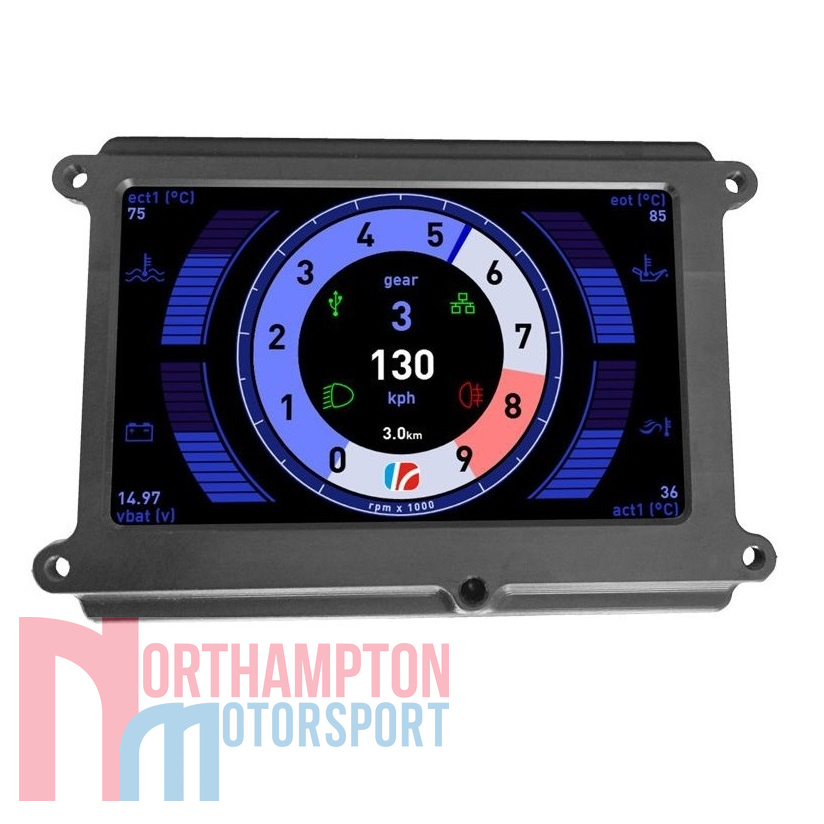

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
