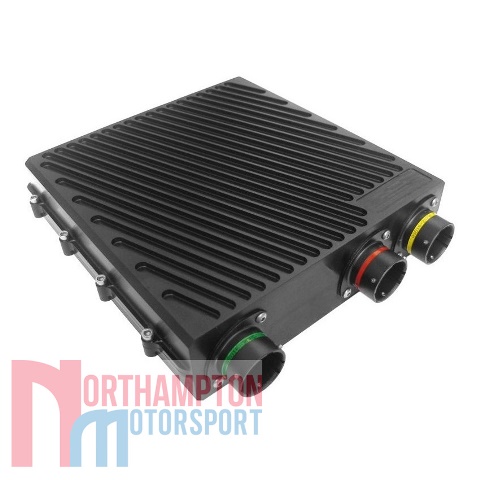

Life Racing F90A Engine Management System (ECU)

£5,480.00 (+VAT)

The F90A ECU has been introduced to allow easy and cost effective control for challenging applications with high pin count and up to 12 fully sequential cylinders. Focused towards the professional motorsport industry, it features a ruggedized enclosure and Deutsch Autosport connectors.

Due to the custom nature of the F90A ECU, this listing is only for the base ECU only. After your purchase, we will contact you to discuss any additional upgrades (all of which are chargeable) and configuration changes which may or may not be required. For more information on ECU upgrades, please see the “Available Upgrade Features” toggle below.

This twin processor unit uses a high-speed RISC processor for code execution and an additional large FPGA for high-speed engine position tracking, allowing the scheduling of code to be independent of signal patterns, increasing flexibility, efficiency and accuracy under transient conditions. This powerful combination also allows advanced control algorithms but yet easy to map for the end user.

The F90A is designed to control complex engines including, turbocharged, supercharged, twin drive by wire, quad cam, quad vvt, vtec, gdi, gearbox, differential and much more! The unique crank and cam sync logger allow the flexibility of controlling the most awkward trigger patterns capable of running all current known patterns and even future OEM timing wheels.

This powerful hardware is packaged within a lightweight CNC billet aluminium case. Designed to be installed in the harshest of motorsport environments.

Specification:

Processing

  • Powerful RISC CPU for advanced strategy execution
  • Custom synchronous FPGA processor for engine position tracking up to 25,000rpm

Outputs

  • 50 user configurable general purpose pulse width modulated power outputs, including:
  • 12 ignition coil outputs IGBT or TTL (Software configurable)
  • 24 fuel injector outputs
  • 8 general PWM outputs or 8 analogue inputs (Software configurable)
  • 3 full bridges also configurable as 6 half bridges or 6 PWMs

Inputs

  • 36 general purpose analogue sensor inputs, including up to 16 bipolar, inductive or hall effect speed / engine position inputs 8 dedicated inputs, including:
    • 4 acoustic knock sensor inputs
    • 2 wideband (NTK) lambda sensor interfaces
    • 2 K-type thermocouple sensor interfaces

Interfaces

  • 100 MHz full duplex Ethernet for calibration, configuration and data download
  • 2 CAN 2.0B interfaces for communication with other controllers or logging systems
  • RS232 serial interface for communication with other controllers or logging systems

Memory

  • 128MB battery backed internal logging memory
  • Ultra fast data download via Ethernet
  • Time/Date stamped data via real time clock

Power Supply

  • 6 to 32V input voltage range with reverse polarity protection
  • 2 regulated 5V sensor supply output with individual short circuit protection
  • Software configurable (5 to 12V) sensor supply output (eg for 10V load cells)
  • 5 Separately protected sensor and communication ground inputs

Physical

  • 3 Deutsch Autosport connectors with a total of 136 pins
  • CNC machined, ‘O’ ring sealed, anodised aluminium case
  • Maximum dimensions including the connectors are 197 x 182 x 44 mm
  • Operating temperature up to +85°C
  • Sealed to IP67
  • Total mass is ~950 grams

Available Upgrade Features

  • Adaptive Knock Control
  • Diesel Control
  • Direct Injection Pump Control*
  • Direct Motor Control
  • Gearbox Control
  • Traction Control
  • Custom Security

All of the additional upgrade features for the Life Racing F90A ECU are available after your purchase for an additional charge.

*Please note, for Direct Injection Pump Control, Life Racing’s Gasoline Direct Injector (GDI) driver is required to power GD injectors which is available separately.

Download Files

life_racing_f90a_ecu_datasheet-liferacing_user_manual

Download F90A Data Sheet











Here at Northampton Motorsport, we also offer a full wiring and fitting service as well as engine calibration on our in house Superflow AD30 2 wheel drive chassis dyno. For more information, please contact us and a member of our team would be happy to assist with your enquiry:

Contact Us

All ECU’s are configured to order so the lead times can vary. Estimated dispatch time within 10 working days.

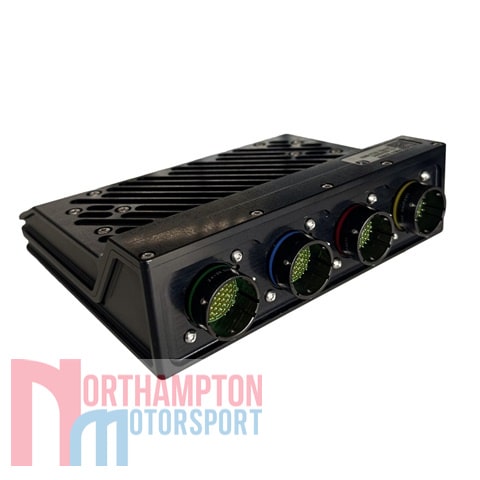

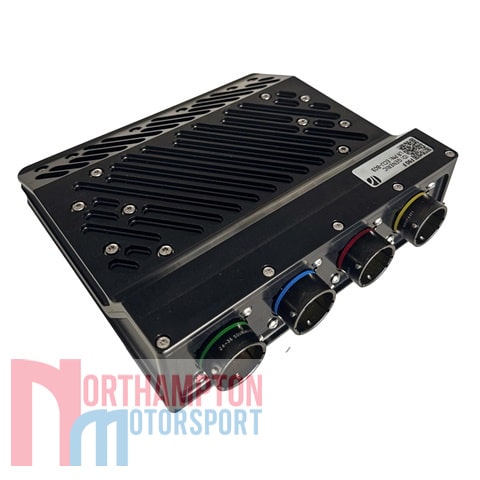

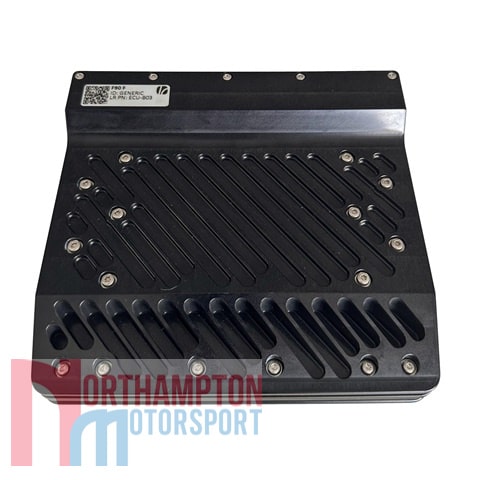

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
