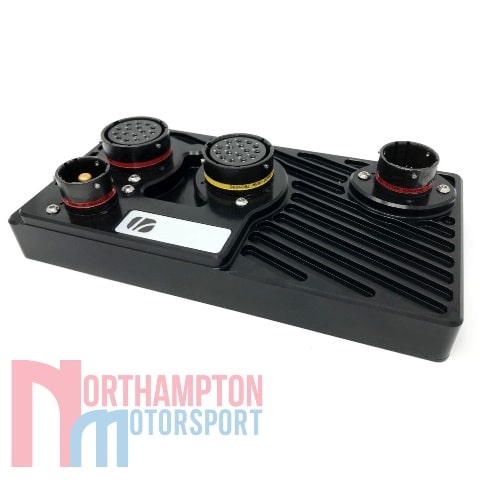

Life Racing PDU34A (AutoSport)

£3,040.00 (+VAT)

The PDU34A is a high-performance solid state power distribution unit with a total of 34 powered output channels and maximum current capacity of 200A. This includes 10 flexible output drivers which may be configured as high side, low side, or high side PWM, with the ability to soft start electrical loads with closed loop current limitation.

Using logical or numerical inputs from its 16 analogue inputs or from any of 3 CAN buses the PDU34A is calibrated using a clear graphical interface with full logic simulation ability and live monitoring.

The PDU34A is able to operate in a low power standby state, drawing <2mA, with configurable activation based on physical or CAN input. Additionally, the PDU34A may be paired with a Life Racing ECU to expand input and output functionality through the ‘slave-link’ feature.

Specification:

Features

  • Lightweight and small dimensions
  • Schematic based calibration including logic simulation tool
  • Numerical arithmetic including handling of analogue inputs
  • Fully custom CAN across 3 buses including mux frames and retransmission (gateway), configured with the help of a graphical display and import/export tool
  • Low power state woken on physical input, CAN activity, or specific CAN frame
  • Optional I/O slaving to an LR ECU

Outputs

  • 34 main Power Outputs
  • 10 multifunction high side, low side, high side PWM (fixed 20kHz) outputs (20A continuous, soft-start inrush limiting 40A, hard-start inrush 60A)
  • 20 high side outputs (20A continuous, hard-start inrush 60A)
  • 4 high side outputs (15A continuous, hard-start inrush 17.5A)
  • Output linking (‘teaming’) to support very high current devices
  • All outputs short circuit and thermally protected with multi-stage in-rush control
  • Combined diagnostic output with reset input
  • 128 scaleable CAN (‘soft’) outputs
  • Custom datastream (CAN) – i.e. customisable channel current, channel state and device information

Inputs

  • 16 physical switch / analogue sensor inputs including software selectable 3k ohm pull-up resistors and 4x inputs capable of programmable “wake up” functionality
  • Analogue inputs may be transformed into engineering units for use in schematic
  • Dedicated wake pin
  • 128 CAN ‘soft’ inputs with configurable scaling, validation and debounce time

Interfaces

  • 2x 100Mbit/s full duplex Ethernet (can be used as Ethernet switch)
  • 3x CAN 2.0B – fully flexible
  • Option for galvanically isolated CAN bus (custom projects only)
  • RS232C serial interface (custom projects only)
  • LIN Bus (custom projects only)

Power Supply

  • 6V to 20V input voltage (12V option) or 6V to 30V input voltage (24V option)
  • Dedicated logic power input
  • Regulated 5V sensor supply output with full circuit protection

Sleep State

  • Low power standby state with configurable wake options:
  • Wake by voltage signal (1.6mA)
  • Wake by any CAN activity (CAN1 only) (2mA)
  • Wake by specific CAN frame (two frames required, CAN1 only) (2mA)
  • Wake by CAN specific CAN frame with low latency (one frame required, CAN1 only) (10mA)

ECU Slaving

  • Allows a Life Racing ECU to “claim” unused pins across a dedicated CAN bus utilising the following PDU I/O:
  • Outputs 1..10 with additional functionality including H-Bridge pairing and configurable PWM frequencies
  • Low Outputs 11..14 with configurable PWM frequencies
  • All 16 inputs, including 8 frequency capable (4 optionally bipolar), and all with software selectable 3k ohm pull-up resistors

Physical

  • 3 Deutsch Autosport connectors with a total of 87 pins
  • Deutsch Autosport Power Stud
  • Machined Aluminium enclosure
  • 190x90x43mm (including connectors)
  • 690 grams
  • Operating Temperature -40C to +85C

Warranty and Servicing

  • This equipment comes with a 1 year warranty against manufacturing defects and failures however misuse or damage will not be covered under warranty

Download Files

life_racing_pdu34a_data_sheet_V2.3

Download PDU34A Data Sheet











Here at Northampton Motorsport, we also offer a full wiring and fitting service as well as engine calibration on our in house Superflow AD30 2 wheel drive chassis dyno. For more information, please contact us and a member of our team would be happy to assist with your enquiry:

Contact Us

Estimated dispatch time within 10 working days.

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
